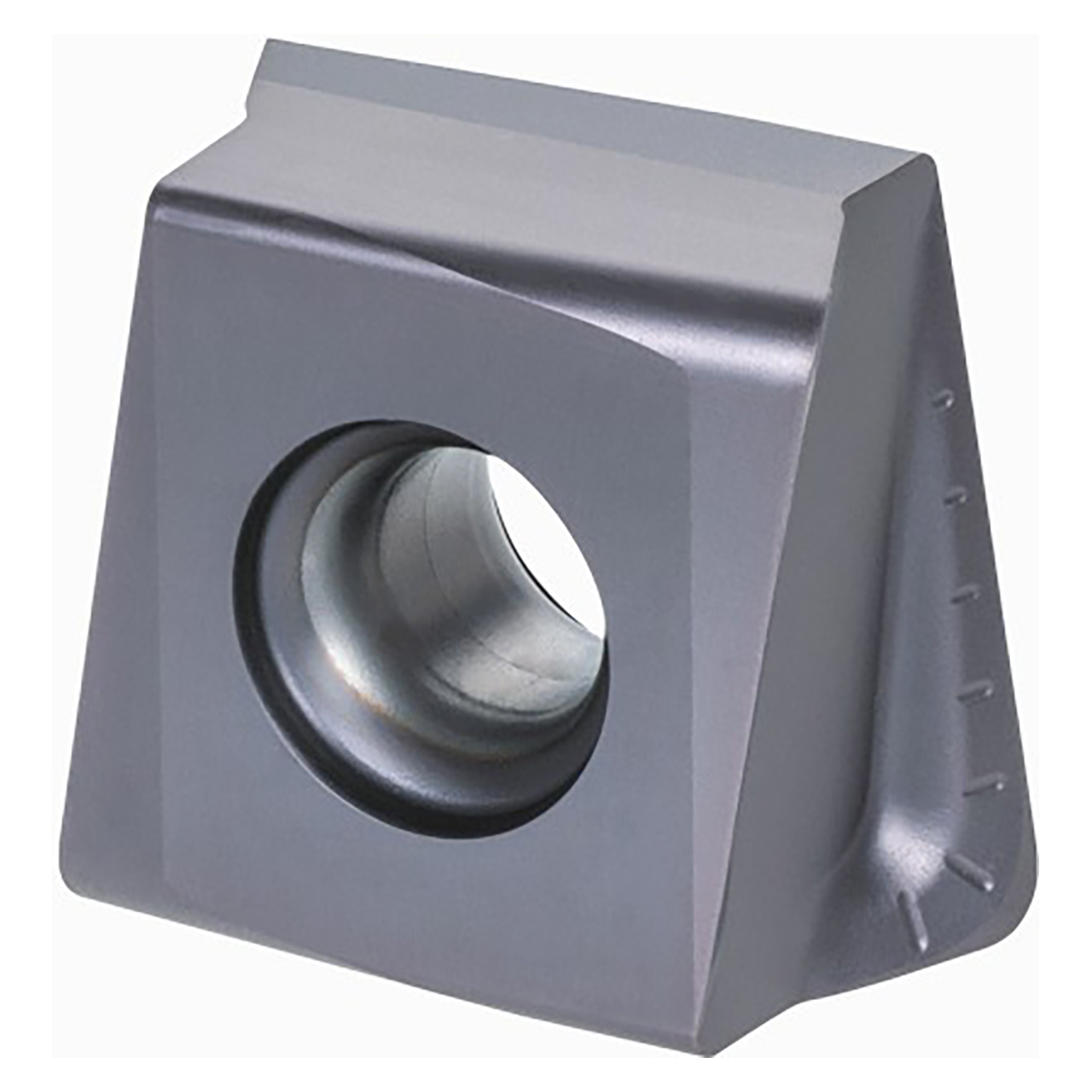

Double sided tangential insert with chipbreaker and highly toughness cutting edges.
Product Specifications
| # MFG | 6756903 |
| Corner Radius (Inch) | 0.063" |
| Depth of Cut Maximum (Inch) | 0.382" |
| Insert Thickness (Inch) | 0.453" |
| Insert Width (Inch) | 0.28" |
| Maximum Feed per Tooth | 0.0118"/tooth |
| Minimum Feed per Tooth | 0.005"/tooth |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.047" |
| Application | Shoulder Milling |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | T1215 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1215
Finish/Coating:
TiCN+Al2O3
Width (Inch):
9/32"
Width (Decimal Inch):
0.2800"
Width (mm):
7.11mm
Thickness (Inch):
29/64"
Thickness (Decimal Inch):
0.4530"
Thickness (mm):
11.51mm
interval quantity:
10
