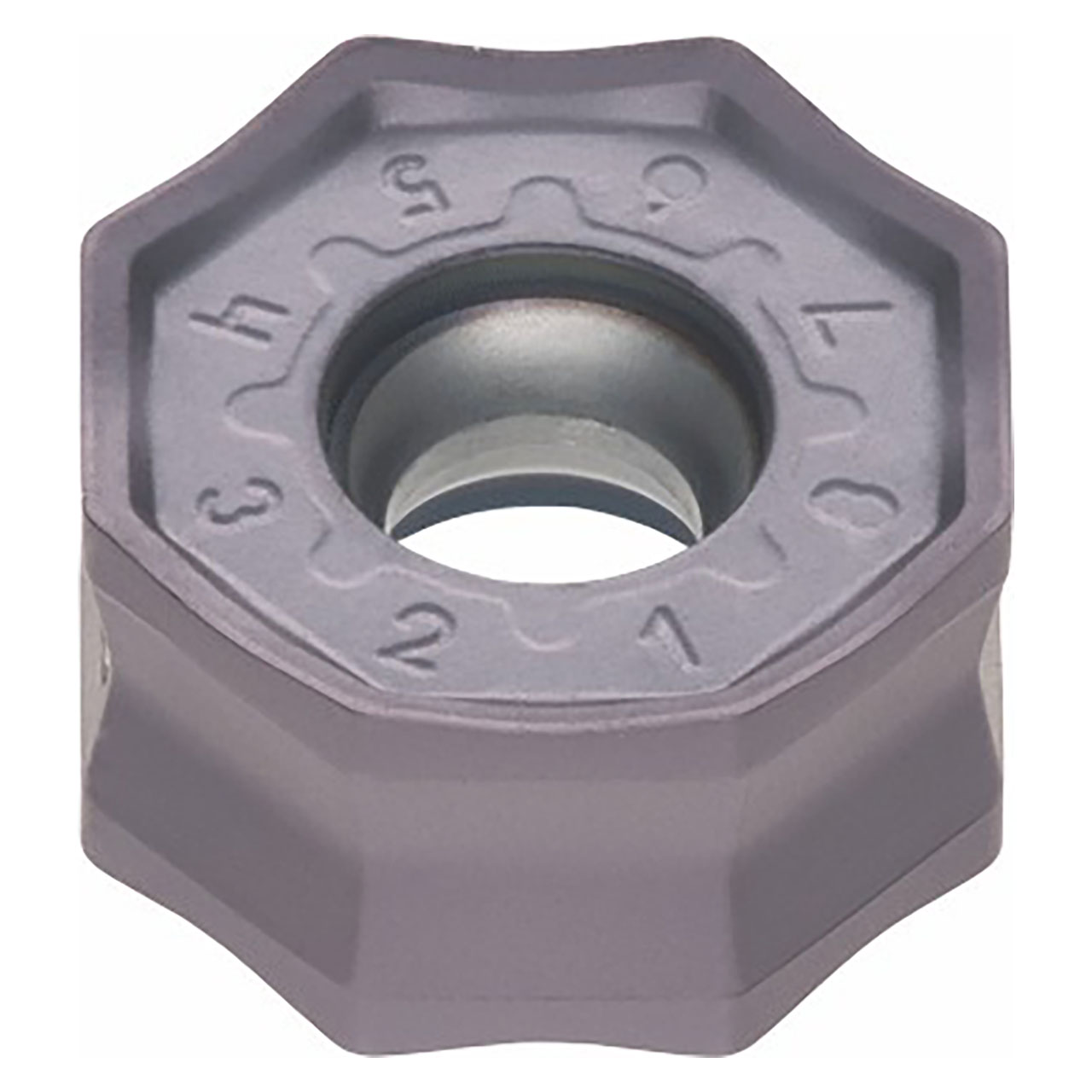

Double-sided octagonal inserts, M class, with 16 edges and MJ chipbreaker.
| # MFG | 6758744 |
| Cutting Edge Effective Length (Inch) | 0.193" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.134" |
| Inscribed Circle Diameter (Inch) | 0.512" |
| Insert Thickness (Inch) | 0.276" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.0039"/tooth |
| Number of Cutting Edges | 16 |
| Wiper Edge Length | 0.028" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
