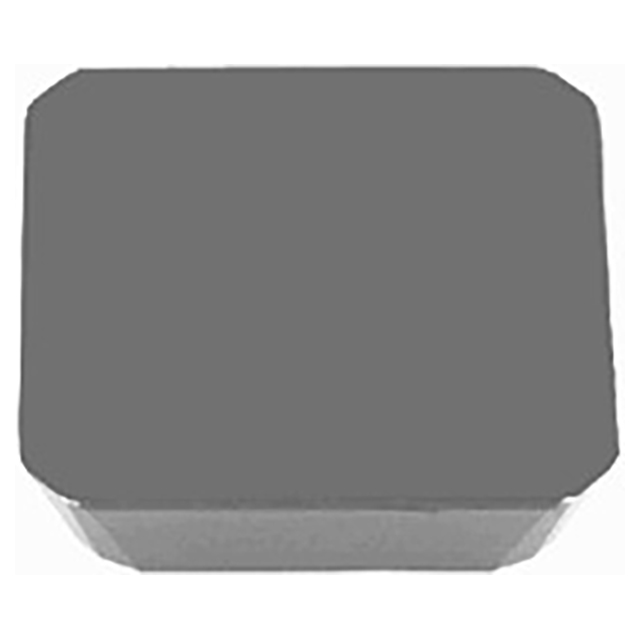

Flat-top square insert with 15 degree relief angle for 45 degree corner angle.
Product Specifications
# MFG | 6774971 |
Depth of Cut Maximum (Inch) | 0.157" |
Insert Thickness (Inch) | 1/8" |
Insert Width (Inch) | 1/2" |
Number of Cutting Edges | 4 |
Wiper Edge Length | 0.047" |
Application | Face Milling |
Coating | TiAlN |
Body Material | Carbide |
Grade | AH3135 |
Cutting Edge Material | Carbide |
Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
interval quantity:
10
