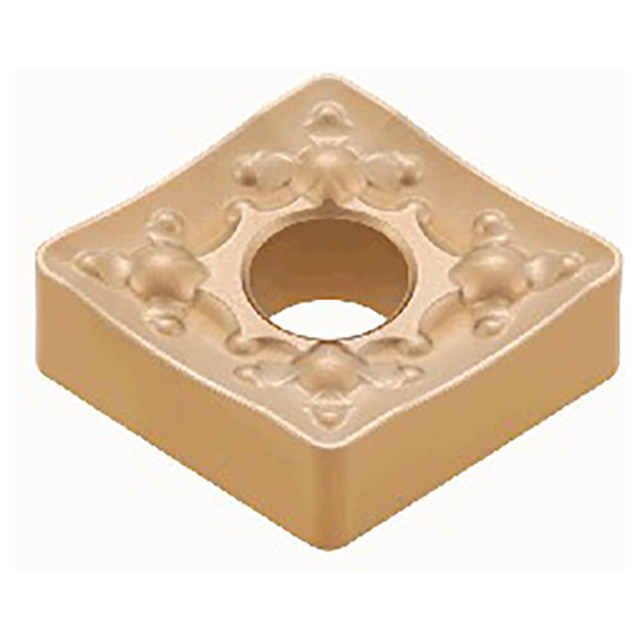

Negative relief angle, M class, 80 degree rhombic insert, for medium to heavy cutting.
Product Specifications
| # MFG | 6781331 |
| Corner Radius (Inch) | 0.094" |
| Cutting Edge Length (Inch) | 1.016" |
| Maximum Depth of Cut (Inch) | 0.315" |
| Fixing Hole Diameter (Inch) | 0.359" |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (Inch) | 3/8" |
| Maximum Turning Feed (Inch) | 0.0314"/rev |
| Minimum Depth of Cut (Inch) | 0.1181" |
| Minimum Turning Feed (Inch) | 0.0118"/rev |
| Grade | T9225 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | TRS |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1"
Inscribed Circle (Decimal Inch):
1.0000"
Inscribed Circle (mm):
25.40mm
Thickness (Inch):
3/8"
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0940"
