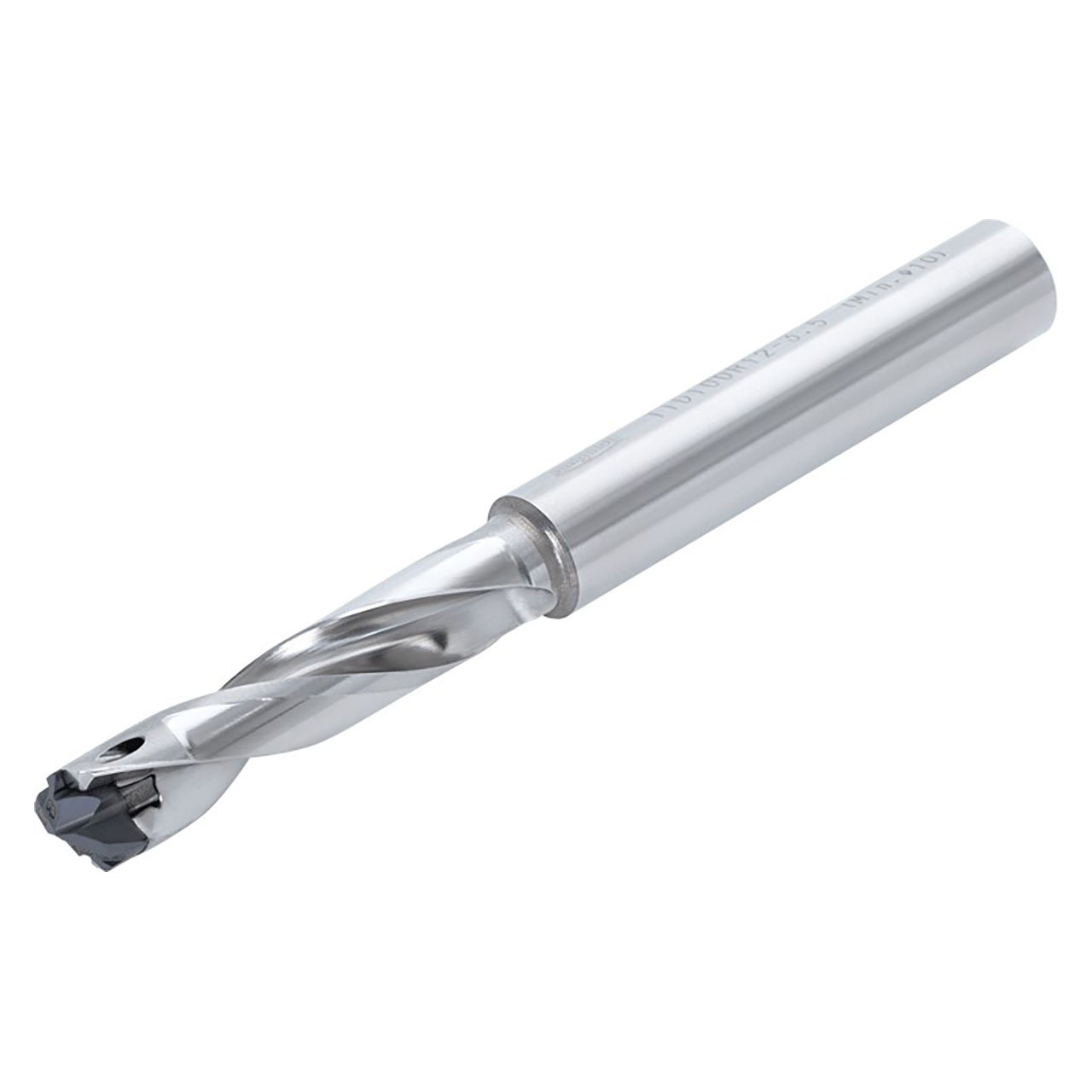

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 9.4 mm |
| Cutting Diameter Minimum (mm.) | 9 mm |
| Connection Diameter Machine Side (Inch) | 3/4" |
| Overall Length (mm) | 91.42mm |
| Point Length (Inch) | 0.095" |
| Shank Length (Inch)) | 1.969" |
| Shank Length (mm) | 3.265" |
| Insert Seat Size Code (SSC) | 16 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.3701"
Minimum Cutting Diameter (Decimal Inch):
0.3543"
Body Material:
Steel
Overall Length (Decimal Inch):
3.5990"
Point Length (Decimal Inch):
0.0540"
Shank Length (Decimal Inch):
1.9680"
Usable Length (Decimal Inch):
1.2400"
