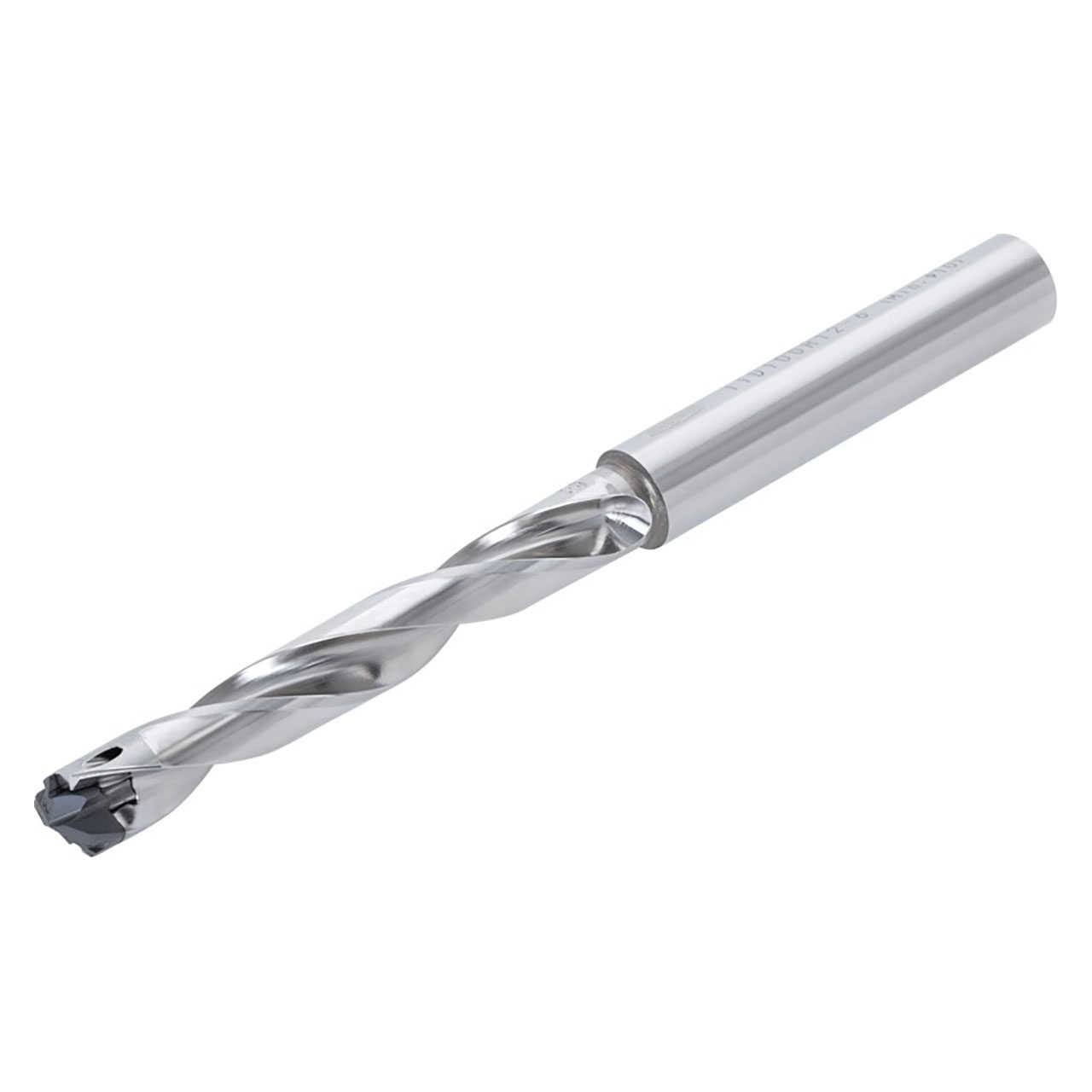

"DrillForceMeister" TIS L/D=3 indexable head drill.
Product Specifications
| Cutting Diameter Maximum (mm) | 9.4 mm |
| Cutting Diameter Minimum (mm.) | 9 mm |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Overall Length (mm) | 114.92mm |
| Point Length (Inch) | 0.287" |
| Shank Length (Inch)) | 2.677" |
| Shank Length (mm) | 4.971" |
| Insert Seat Size Code (SSC) | 40 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.3701"
Minimum Cutting Diameter (Decimal Inch):
0.3543"
Body Material:
Steel
Overall Length (Decimal Inch):
4.5240"
Point Length (Decimal Inch):
0.0540"
Shank Length (Decimal Inch):
1.9680"
Usable Length (Decimal Inch):
2.1260"
interval quantity:
1
