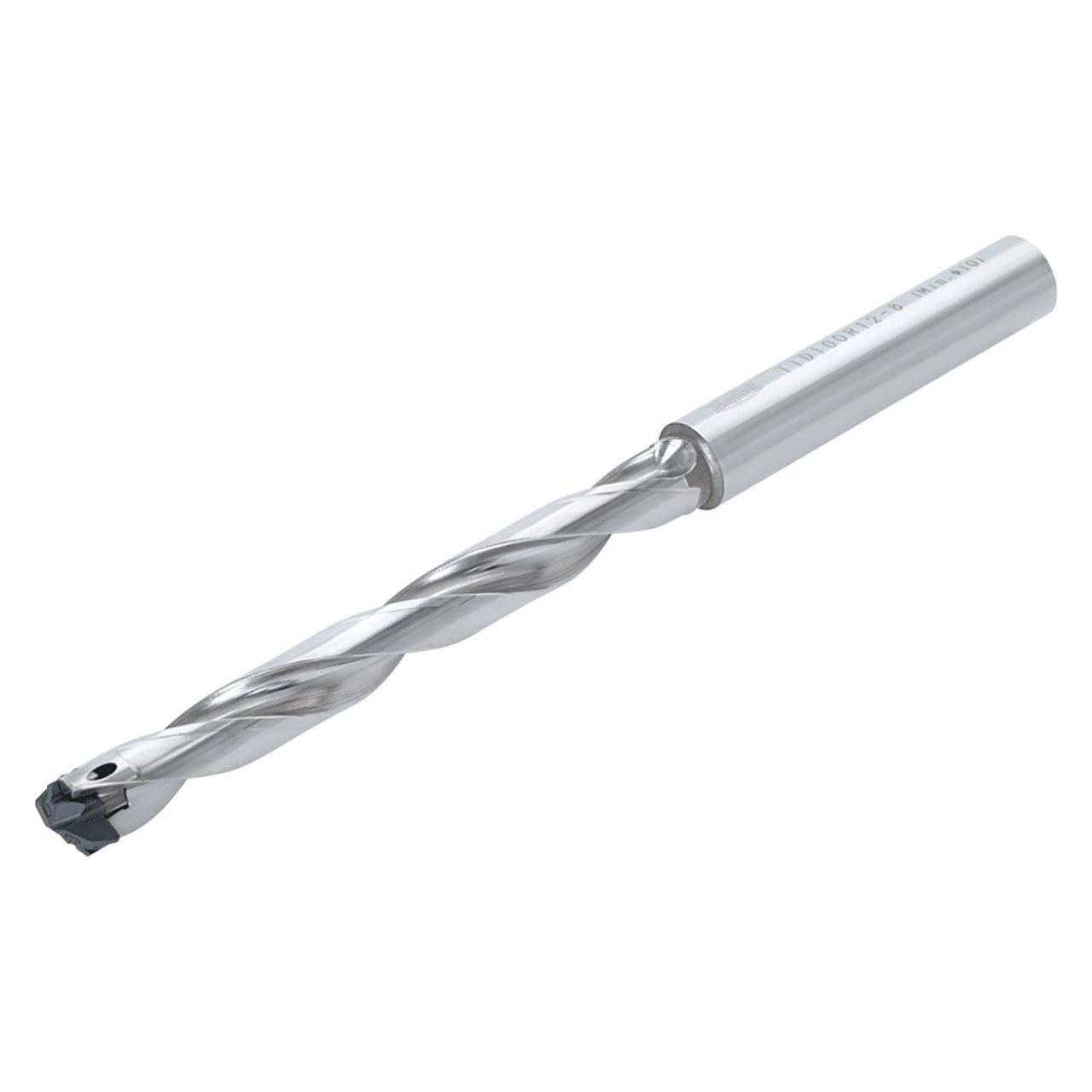

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 11.4 mm |
| Cutting Diameter Minimum (Inch) | 11 mm |
| Cutting Diameter Minimum (mm.) | 11 mm |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Overall Length (mm) | 174.43mm |
| Point Length (Inch) | 0.087" |
| Shank Length (Inch)) | 1.89" |
| Shank Length (mm) | 1.836" |
| Insert Seat Size Code (SSC) | 14 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4488"
Minimum Cutting Diameter (Decimal Inch):
0.4331"
Body Material:
Steel
Overall Length (Decimal Inch):
6.8670"
Point Length (Decimal Inch):
0.0660"
Shank Length (Decimal Inch):
2.5590"
Usable Length (Decimal Inch):
3.8580"
interval quantity:
1
