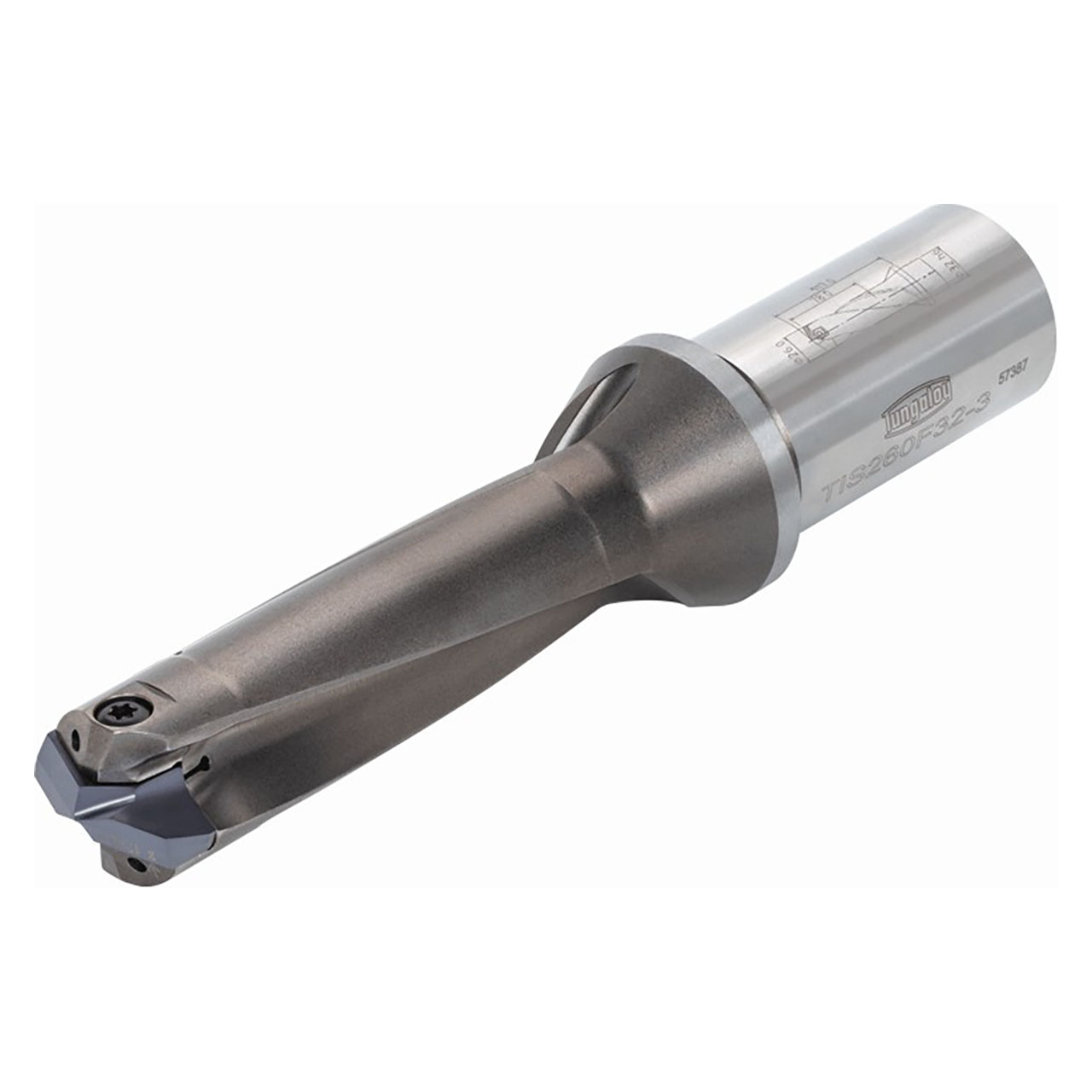

"DrillForceMeister" TIS L/D=3 indexable head drill.
Product Specifications
| Cutting Diameter Maximum (mm) | 23.9 mm |
| Cutting Diameter Minimum (mm.) | 23 mm |
| Flange Diameter (mm) | 32 mm |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Overall Length (mm) | 157.40mm |
| Point Length (Inch) | 0.208" |
| Shank Length (Inch)) | 2.362" |
| Shank Length (mm) | 3.604" |
| Insert Seat Size Code (SSC) | 29 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
23.90mm
Minimum Cutting Diameter (mm):
23.00mm
Flange Diameter (mm):
32.00mm
Body Material:
Steel
Overall Length (mm):
157.40mm
Point Length (mm):
3.60mm
Shank Length (mm):
56.00mm
Usable Length (mm):
72.60mm
interval quantity:
1
