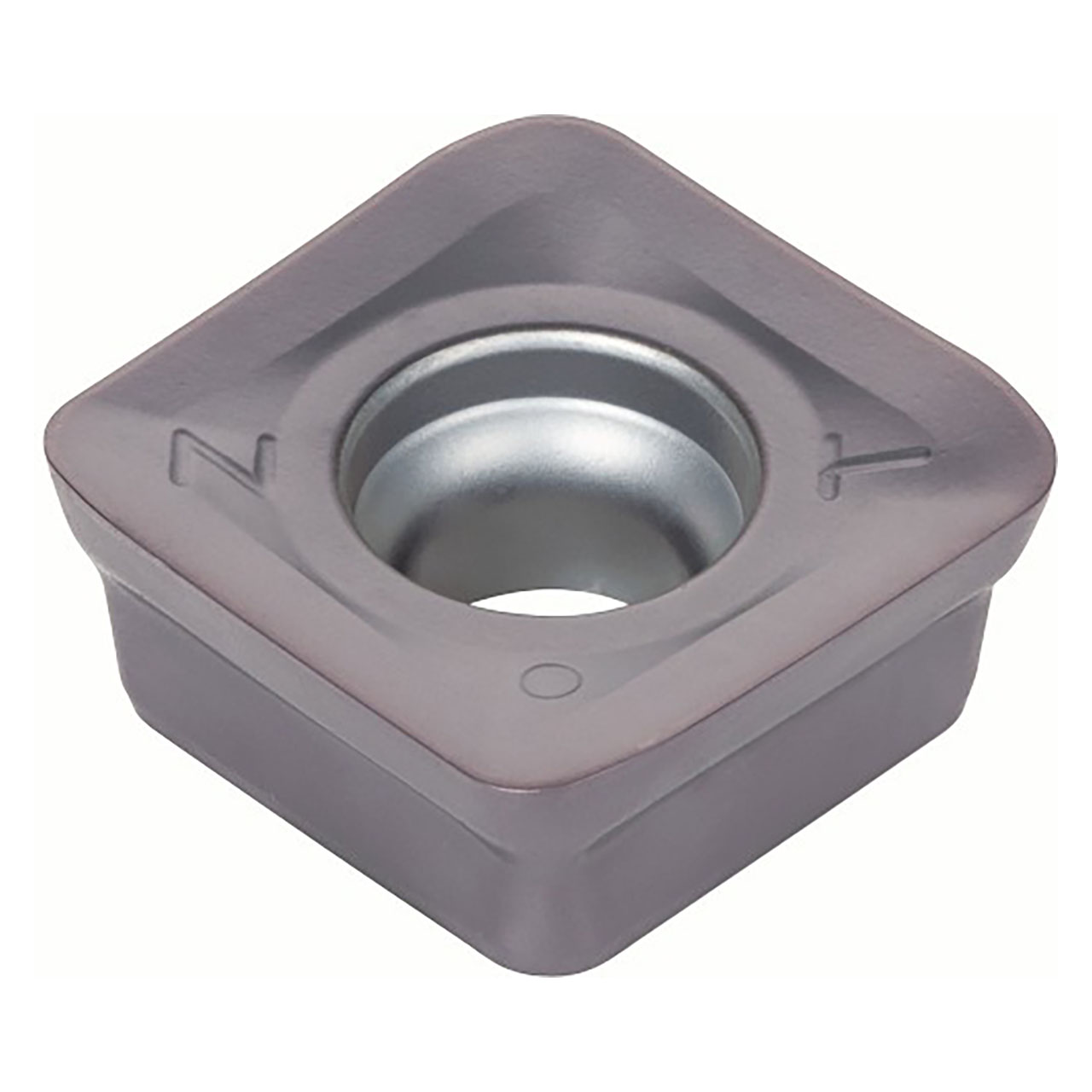

Single-sided square insert with MT chipbreaker. Strong cutting edge type.
Product Specifications
| # MFG | 6788948 |
| Cutting Edge Effective Length (Inch) | 0.627" |
| Depth of Cut Maximum (Inch) | 0.098" |
| Inscribed Circle Diameter (Inch) | 0.627" |
| Insert Thickness (Inch) | 0.268" |
| Insert Width (Inch) | 0.627" |
| Maximum Feed per Tooth | 0.0787"/tooth |
| Minimum Feed per Tooth | 0.0118"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
5/8"
Width (Decimal Inch):
0.6270"
Width (mm):
15.93mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6270"
Inscribed Circle (mm):
15.93mm
Thicknes (Inch):
17/64"
Thicknes (Decimal Inch):
0.2680"
Thicknes (mm):
6.81mm
interval quantity:
10
