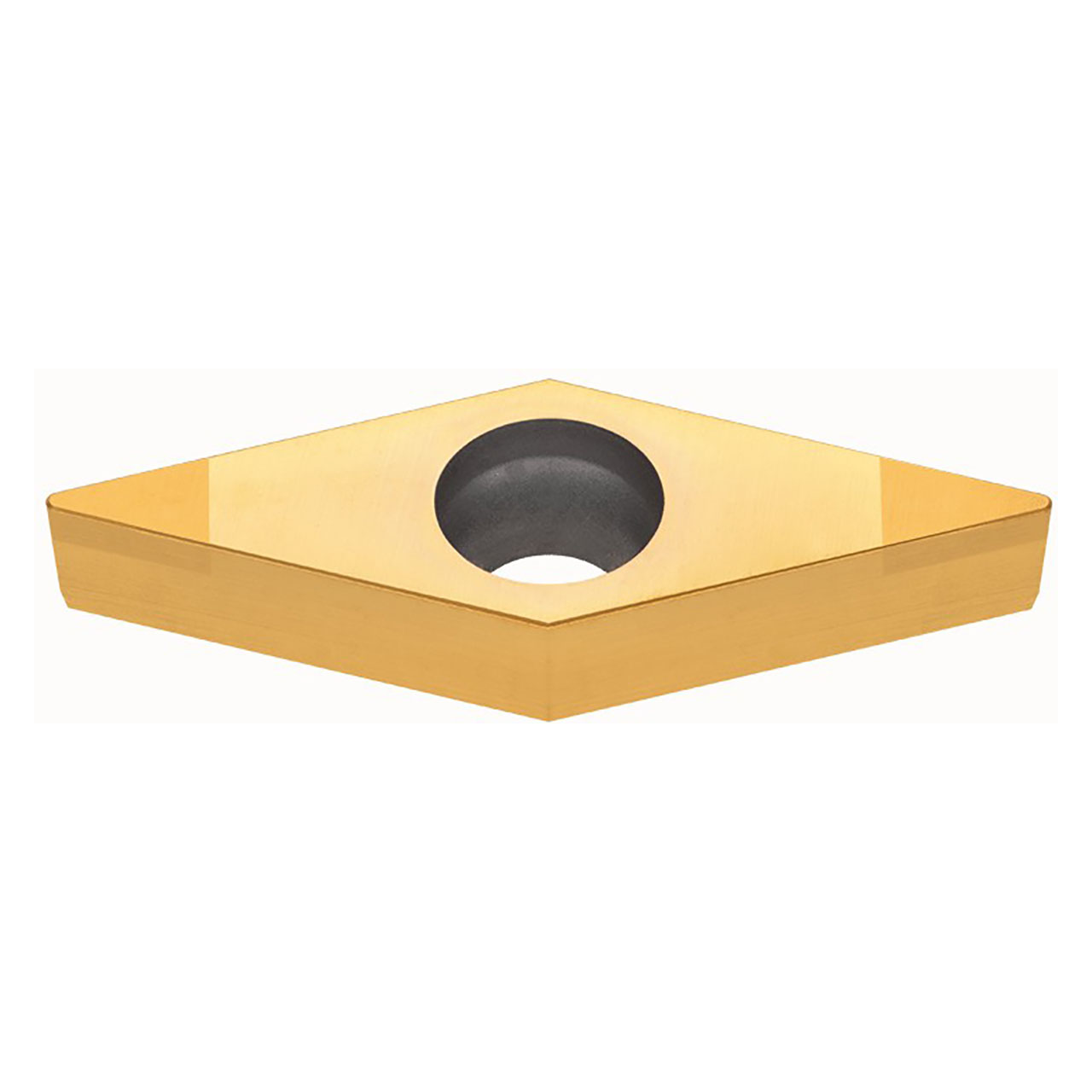

Positive 7 degree relief angle, M/G class, 35 degree rhombic CBN insert.
Product Specifications
| # MFG | 6791104 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.654" |
| Cutting Edge Effective Length (Inch) | 0.138" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0098"/rev |
| Minimum Depth of Cut (Inch) | 0.002" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Cutting Edge Material | PCBN |
| Grade | BXA20 |
| Tool Type | Turn Ultra Hard Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | H-CBN |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (mm):
4.75mm
