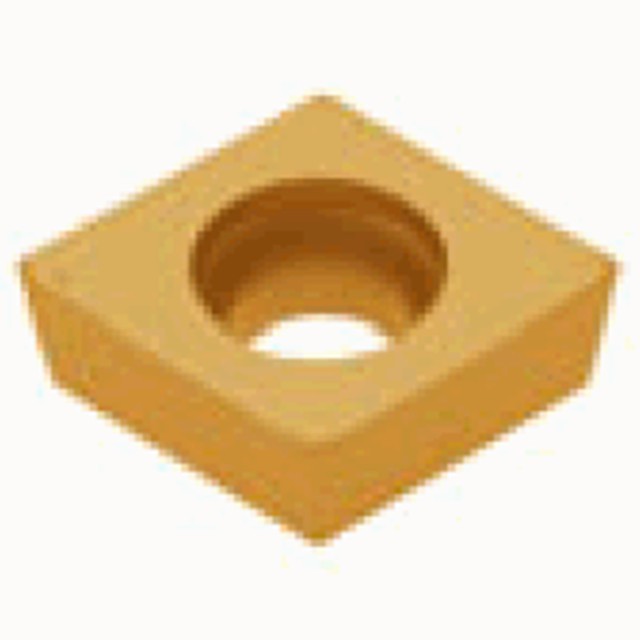

Tungaloy 6801363 | CCGW 32.51 GH110 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius TiCNO Coated Carbide Indexable Turning Insert

$24.45 $17.12
(You save $7.33)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Corner Radius (Decimal Inch):
0.0160"
Thickness (mm):
3.96mm
Corner Radius (mm):
0.41mm
SKU:
23132972
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M/G class, 80 degree rhombic insert, without chipbreaker for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6801363
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0394"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiCNO
Cutting Edge MaterialCarbide
GradeGH110
Tool TypeTurn Positive Inserts
Applicable MaterialCast Iron, Non Ferrous Metals
Chip Breaker TypeFT
Major Clearance Angle7 Degree
Body MaterialCarbide
