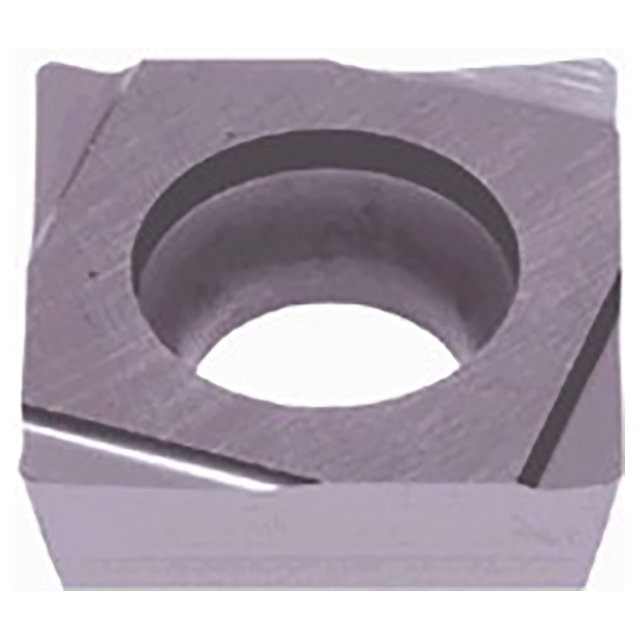

Positive 11 degree relief angle, G class, square insert, lead type chipbreaker for finishing.
Product Specifications
| # MFG | 6807093 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 3/8" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0079"/rev |
| Minimum Depth of Cut (Inch) | 0.0079" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Cutting Edge Material | Carbide |
| Grade | TH10 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
| Chip Breaker Type | W15 |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
