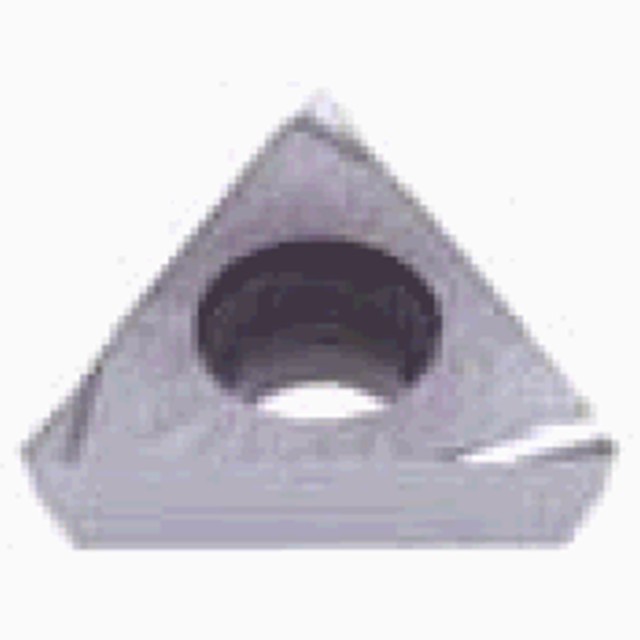

Tungaloy 6808885 | TPGT 631 L-W08 UX30 0.187" Circle Diameter x 0.094" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$13.05 $9.14
(You save $3.91)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/16"
Inscribed Circle (Decimal Inch):
0.1870"
Inscribed Circle (mm):
4.75mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23134597
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, G class, triangular insert, lead type chipbreaker for finishing.


Product Specifications
Manufacturer Part Number6808885
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.323"
Maximum Depth of Cut (Inch)0.0394"
Fixing Hole Diameter (Inch)0.091"
Inscribed Circle Diameter (Inch)0.187"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0004"/rev
Cutting Edge MaterialCarbide
GradeUX30
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker TypeW08
Major Clearance Angle11 Degree
Body MaterialCarbide
