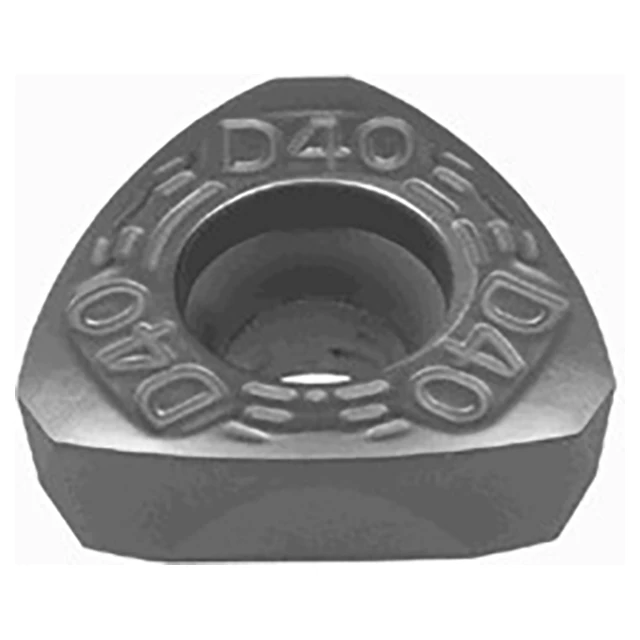

Unique shape insert for roughing ball-nose endmill.
Product Specifications
| # MFG | 6811545 |
| Cutting Edge Effective Length (Inch) | 0.512" |
| Corner Radius (Inch) | 0.7874" |
| Insert Thickness (Inch) | 0.217" |
| Number of Cutting Edges | 3 |
| Application | Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2170"
Thickness (mm):
5.51mm
interval quantity:
10
