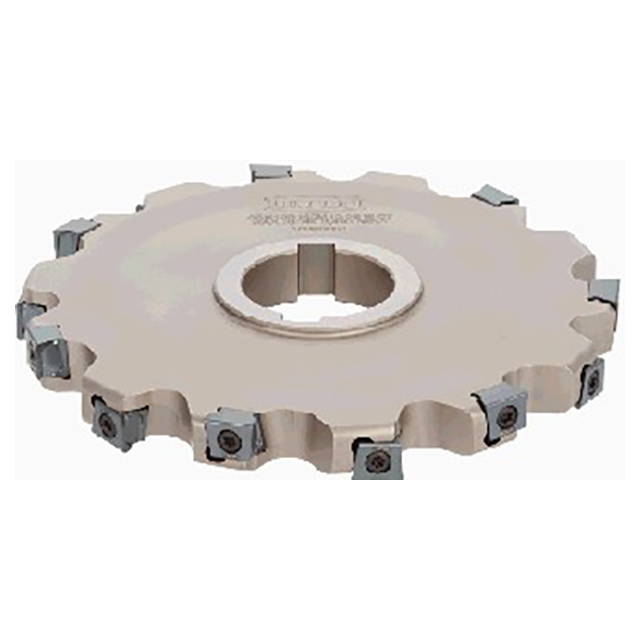

Axial drive type slot milling cutter with tangentially mounted inserts.
Product Specifications
| Manufacturer Part Number | 6817001 |
| Cutting Diameter (Inch) | 3.937" |
| Cutting Depth Maximum (Inch) | 0.984" |
| Cutting Item Count | 10 |
| Cutting Width (Inch) | 0.748" |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Overall Length (Inch) | 0.748" |
| Hub Thickness (Inch) | 0.748" |
| Peripheral Effective Cutting Edge Count | 5 |
| Tool Type | Double-sided slotting cutters |
| Body Material | Steel |
| Application | Slot Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Cutting Width (Inch):
3/4"
Cutting Width (Decimal Inch):
0.7480"
Cutting Width (mm):
19.00mm
Maximum Depth of Cut (Inch):
63/64"
Maximum Depth of Cut (Decimal Inch):
0.9840"
Maximum Depth of Cut (mm):
24.99mm
interval quantity:
1
