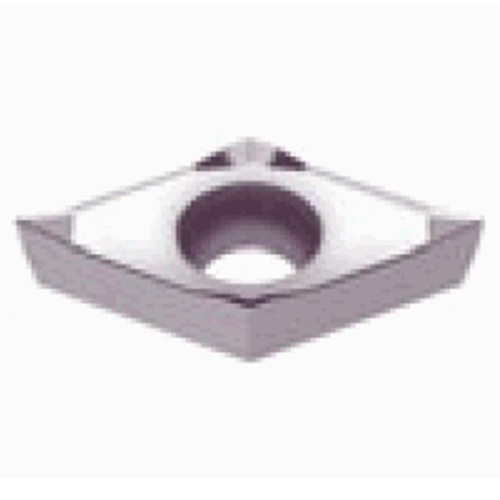

Positive 7 degree relief angle, G class, 55 degree rhombic insert, for aluminum cutting.
Product Specifications
| Manufacturer Part Number | 6822281 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.457" |
| Maximum Depth of Cut (Inch) | 0.1969" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0196"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Cutting Edge Material | Carbide |
| Grade | KS05F |
| Tool Type | Turn Inserts AL, HTA Geometric |
| Applicable Material | Cast Iron, Non Ferrous Metals, Hi Temp Alloys |
| Chip Breaker Type | AL |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (mm):
3.96mm
