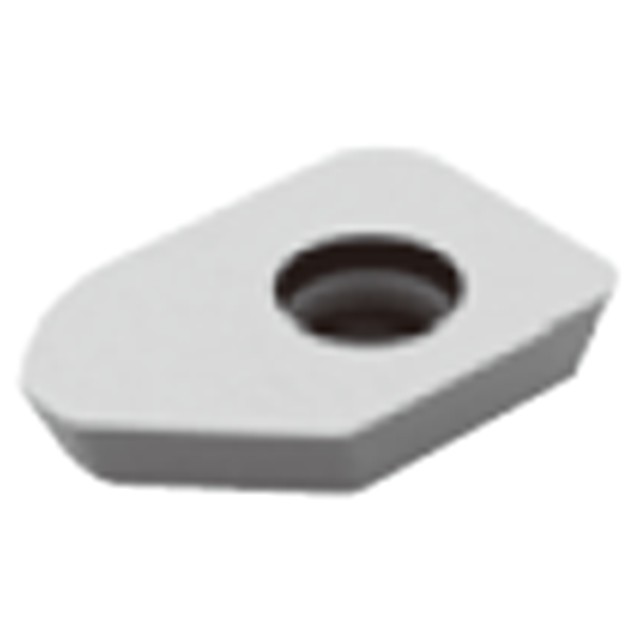

Wiper insert for aluminum finishing.
| Manufacturer Part Number | 6849027 |
| Corner Radius (Inch) | 0.059" |
| Depth of Cut Maximum (Inch) | 0.039" |
| Inscribed Circle Diameter (Inch) | 0.504" |
| Insert Thickness (Inch) | 0.157" |
| Insert Width (Inch) | 0.756" |
| Maximum Feed per Tooth | 0.0098"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 1 |
| Wiper Edge Length | 0.307" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | KS05F |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Non Ferrous Metals, Hi Temp Alloys |
