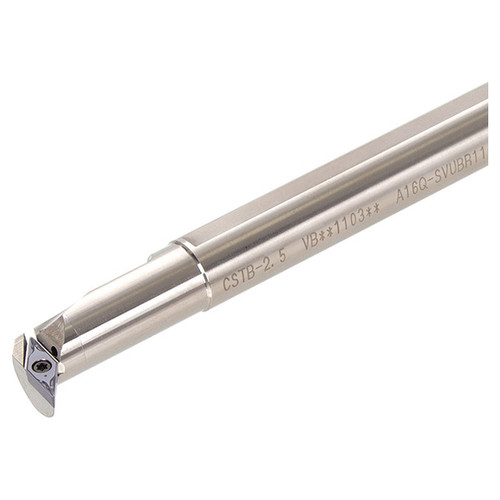

Screw-on boring bars, for position 35 degree rhombic insert with 5 degree clearance.
| # MFG | 6849583 |
| Connection Diameter Machine Side (mm) | 20mm |
| Functional Length (mm) | 200mm |
| Functional Width (mm) | 17.5mm |
| Head Length (mm) | 40mm |
| Minimum Bore Diameter (mm) | 25mm |
| Shank Height (mm) | 19mm |
| Body Material | Steel |
| Application | For 35 Degree Rhombic Insert , For Miniature Machining |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -7 Degree |
