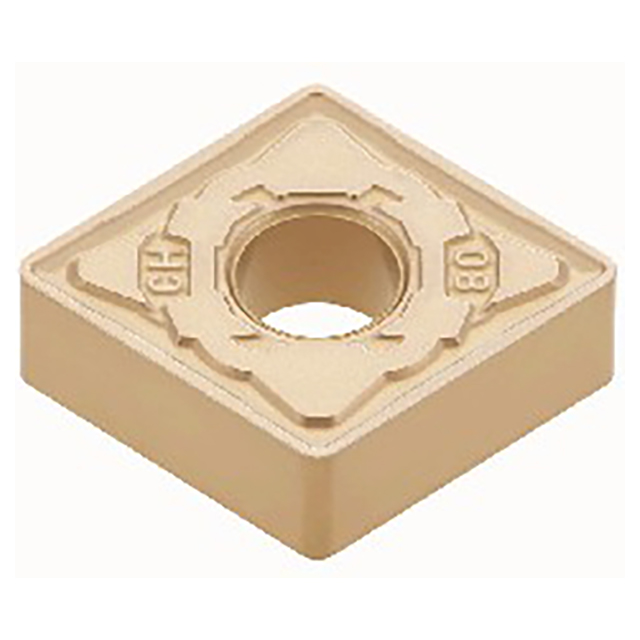

Negative relief angle, M class, 80 degree rhombic insert, for medium to heavy cutting of grey and ductile cast iron.
| # MFG | 6850163 |
| Corner Radius (Inch) | 0.063" |
| Cutting Edge Length (Inch) | 0.634" |
| Maximum Depth of Cut (Inch) | 0.2362" |
| Fixing Hole Diameter (Inch) | 1/4" |
| Inscribed Circle Diameter (Inch) | 5/8" |
| Insert Thickness (Inch) | 1/4" |
| Maximum Turning Feed (Inch) | 0.0236"/rev |
| Minimum Depth of Cut (Inch) | 0.0787" |
| Minimum Turning Feed (Inch) | 0.0079"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T5105 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron |
| Chip Breaker Type | CH |
| Body Material | Carbide |
