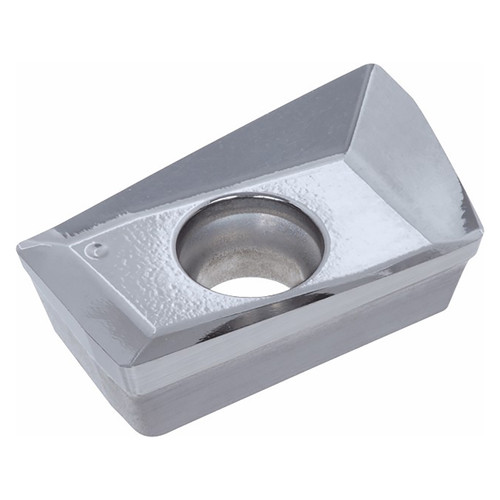

Tungaloy 6852494 | ASGT11T304PDFR-AJ DS1100 0.264" Diameter x 0.146" Thickness x 0.016" Radius Diamond Like Carbon Coated Carbide Milling Insert

$31.30 $21.91
(You save $9.39)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DS1100
Finish/Coating:
Diamond Like Carbon
Width (Inch):
17/64"
Width (Decimal Inch):
0.2640"
Width (mm):
6.71mm
Length (Inch):
31/64"
Length (Decimal Inch):
0.4840"
Length (mm):
12.29mm
Inscribed Circle (Inch):
17/64"
Inscribed Circle (Decimal Inch):
0.2640"
Inscribed Circle (mm):
6.71mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1460"
Thickness (mm):
3.71mm
interval quantity:
10
SKU:
23017917
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Highly precious ground insert with AJ chipbreaker for aluminum machining.


Product Specifications
# MFG6852494
Corner Radius (Inch)0.0157"
Depth of Cut Maximum (Inch)0.417"
Inscribed Circle Diameter (Inch)0.264"
Insert Length (Inch)0.484"
Insert Thickness (Inch)0.146"
Insert Width (Inch)0.264"
Maximum Feed per Tooth0.0079"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges2
Wiper Edge Length0.055"
ApplicationShoulder Milling
CoatingDiamond Like Carbon
Body MaterialCarbide
GradeDS1100
Cutting Edge MaterialCarbide
Applicable MaterialNon Ferrous Metals

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DS1100
Finish/Coating:
Diamond Like Carbon
Width (Inch):
17/64"
Width (Decimal Inch):
0.2640"
Width (mm):
6.71mm
Length (Inch):
31/64"
Length (Decimal Inch):
0.4840"
Length (mm):
12.29mm
Inscribed Circle (Inch):
17/64"
Inscribed Circle (Decimal Inch):
0.2640"
Inscribed Circle (mm):
6.71mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1460"
Thickness (mm):
3.71mm
interval quantity:
10
