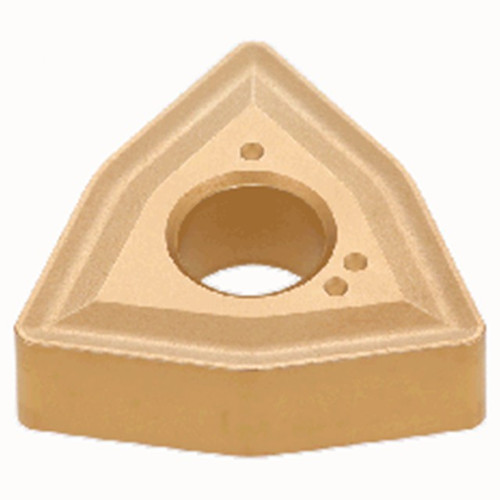

Tungaloy 6852925 | WNMG 432 T5105 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$15.75 $11.03
(You save $4.72)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23027110
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, trigon insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6852925
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.343"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT5105
Tool TypeTurn Negative Inserts
Applicable MaterialCast Iron
Chip Breaker TypeAR
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
