Tungaloy 6853012 | TNMG 222 T5125 1/4" Circle Diameter x 1/8" Thickness x 0.031" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$8.10 $5.67
(You save $2.43)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23137004
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

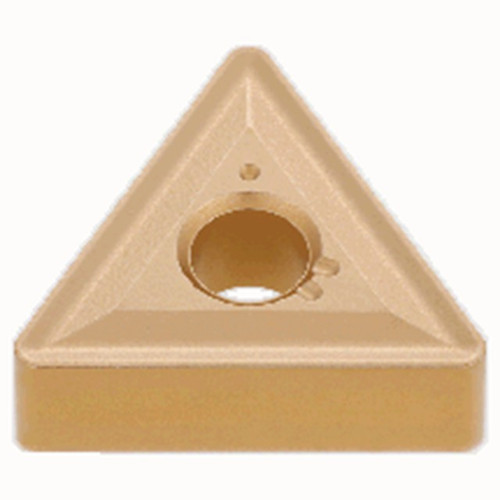

Negative relief angle, M class, triangular insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6853012
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.089"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT5125
Tool TypeTurn Negative Inserts
Applicable MaterialCast Iron
Chip Breaker TypeAR
Body MaterialCarbide
