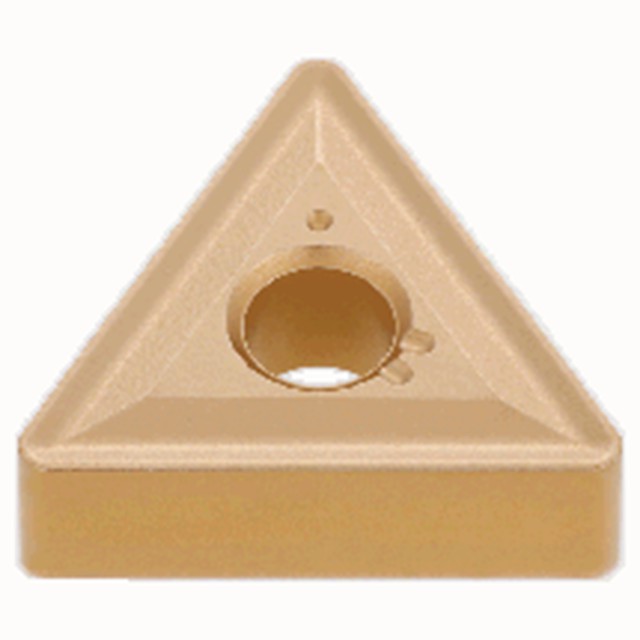

Tungaloy 6853021 | TNMG 333 T5125 3/8" Circle Diameter x 0.187" Thickness x 0.047" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$13.35 $8.68
(You save $4.67)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
interval quantity:
10
SKU:
23137009
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6853021
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.65"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT5125
Tool TypeTurn Negative Inserts
Applicable MaterialCast Iron
Chip Breaker TypeAR
Body MaterialCarbide
