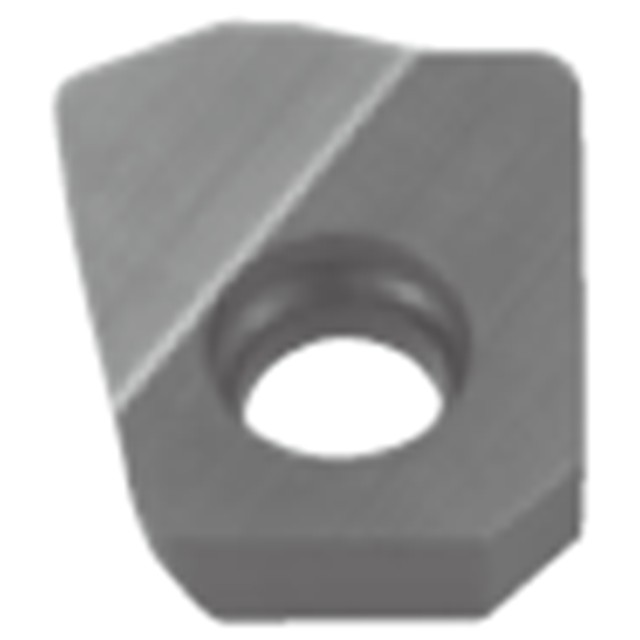

Tungaloy 6853066 | XXGT07X305EC-MJ AH730 0.118" Thickness x 0.276" Insert Length TiAlN Coated Carbide Milling Insert

$20.35 $16.89
(You save $3.46)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH730
Finish/Coating:
TiAlN
Width (Inch):
15/64"
Width (Decimal Inch):
0.2320"
Width (mm):
5.89mm
Length (Inch):
9/32"
Length (Decimal Inch):
0.2760"
Length (mm):
7.01mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1180"
Thickness (mm):
3.00mm
SKU:
23027506
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Central edge insert for general purpose.


Product Specifications
Manufacturer Part Number6853066
Depth of Cut Maximum (Inch)0.024"
Insert Length (Inch)0.276"
Insert Thickness (Inch)0.118"
Insert Width (Inch)0.232"
Number of Cutting Edges1
ApplicationFace Milling, High Feed Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH730
Cutting Edge MaterialCarbide
Applicable MaterialSteel
