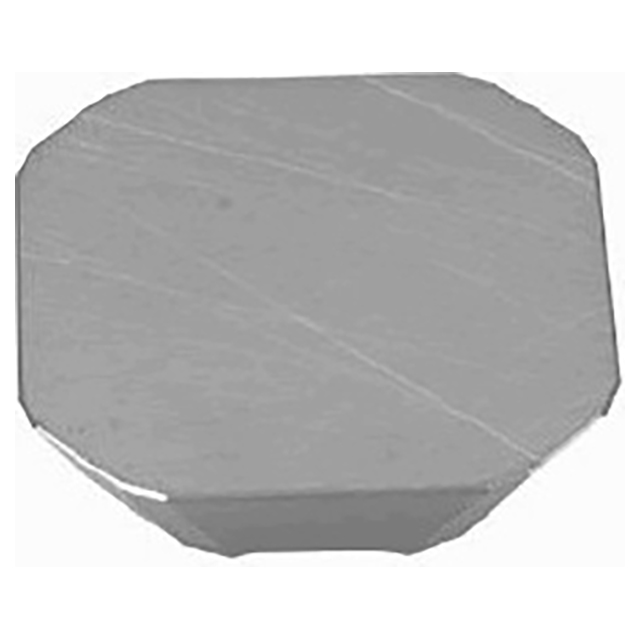

Flat-top square insert with 20 degree relief angle, for large depth of cut.
Product Specifications
| # MFG | 6853840 |
| Depth of Cut Maximum (Inch) | 0.236" |
| Insert Thickness (Inch) | 0.187" |
| Insert Width (Inch) | 5/8" |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.063" |
| Application | Face Milling |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | T3130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3130
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
5/8"
Width (Decimal Inch):
0.6300"
Width (mm):
16.00mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
