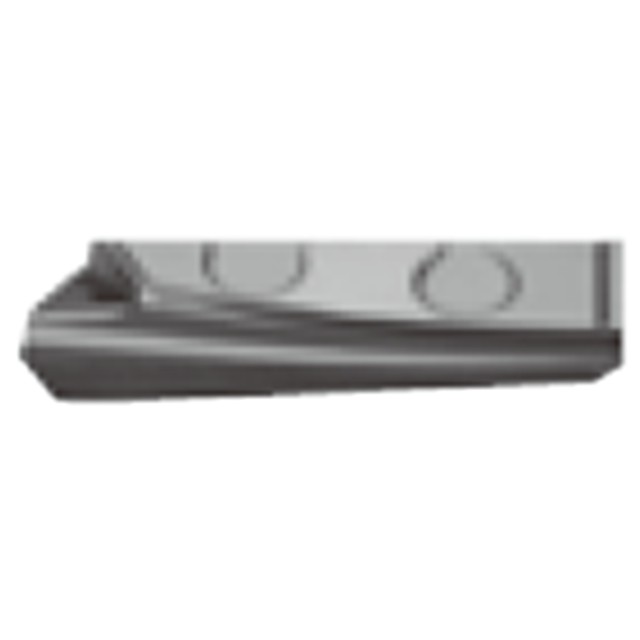

Tungaloy 6856026 | XHGR18T204ER-MJ AH730 0.094" Thickness x 0.709" Insert Length x 0.016" Radius TiAlN Coated Carbide Milling Insert

$19.00 $15.77
(You save $3.23)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH730
Finish/Coating:
TiAlN
Width (Inch):
15/64"
Width (Decimal Inch):
0.2390"
Width (mm):
6.07mm
Length (Inch):
45/64"
Length (Decimal Inch):
0.7090"
Length (mm):
18.01mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
SKU:
23027407
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Highly precious ground insert for general purpose.


Product Specifications
Manufacturer Part Number6856026
Cutting Edge Effective Length (Inch)0.709"
Corner Radius (Inch)0.0157"
Depth of Cut Maximum (Inch)0.63"
Insert Length (Inch)0.709"
Insert Thickness (Inch)0.094"
Insert Width (Inch)0.239"
Number of Cutting Edges1
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH730
Cutting Edge MaterialCarbide
Applicable MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH730
Finish/Coating:
TiAlN
Width (Inch):
15/64"
Width (Decimal Inch):
0.2390"
Width (mm):
6.07mm
Length (Inch):
45/64"
Length (Decimal Inch):
0.7090"
Length (mm):
18.01mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
