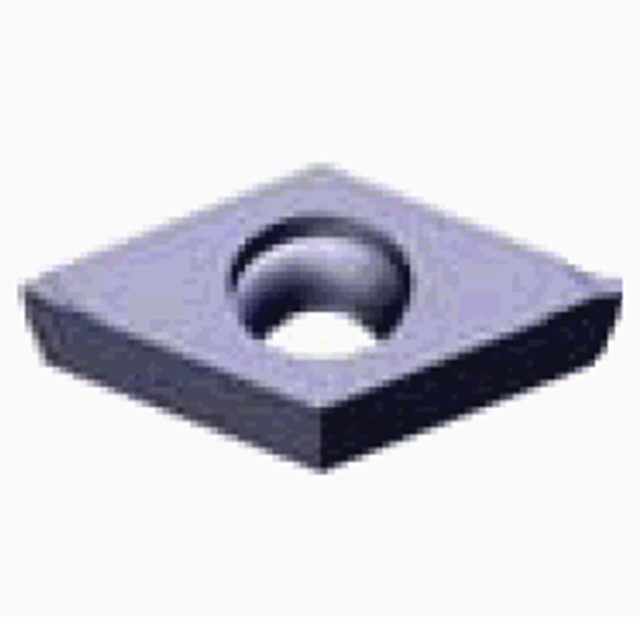

Positive 7 degree relief angle, E class, 55 degree rhombic insert, lead (ramp) type chipbreaker for cutting on small lathes.
| Manufacturer Part Number | 6856651 |
| Corner Radius (Inch) | 0.003" |
| Cutting Edge Length (Inch) | 0.457" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0016"/rev |
| Minimum Depth of Cut (Inch) | 0.0031" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | SH730 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Chip Breaker Type | JRP |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
