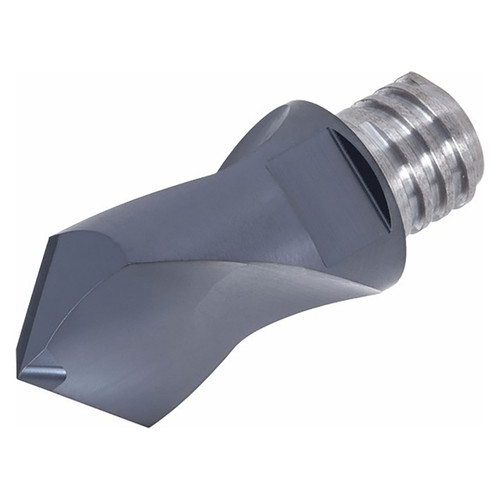

Chamfering & Spot drill, 2 flutes, chamfering angle: 30, 45, 60 degree.
Product Specifications
| Manufacturer Part Number | 6859256 |
| Cutting Diameter Maximum (mm) | 16mm |
| Cutting Diameter (mm) | 2.5mm |
| Depth of Cut Maximum (mm) | 16mm |
| Functional Length (mm) | 20.2mm |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 2 |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Chamfering Endmills |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Multi Functional Tools |
