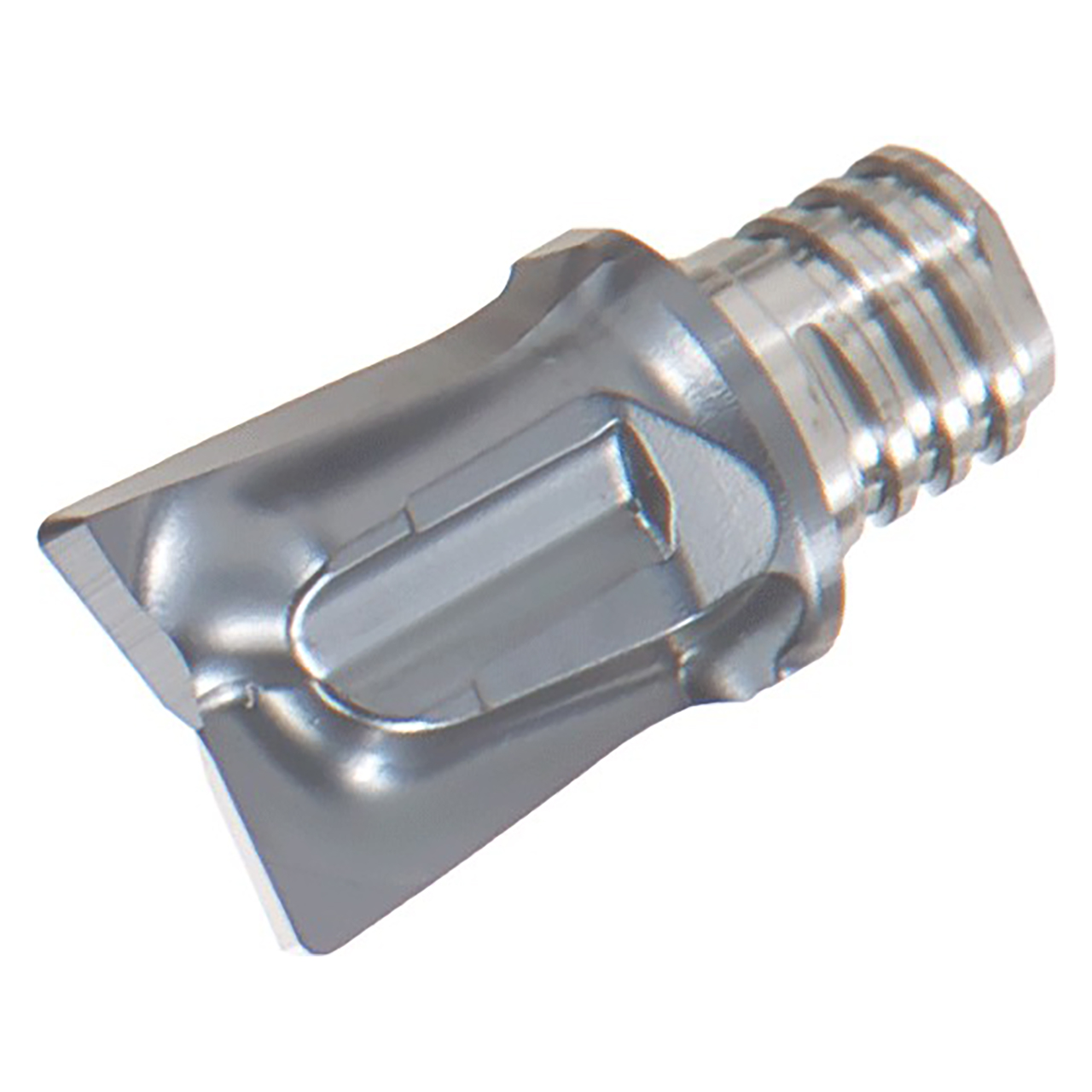

Name: Tungaloy 6859505 | VGC120L10.0R10-02S08 AH725 12.00mm Diameter x 14.20mm Functional Length x 10.00mm Depth of Cut x 1.00mm Radius TiAlN Coated Carbide Counter Boring Replaceable Milling Tip
Brand: Tungaloy
SKU: 23137709
Availability: InStock

Tungaloy 6859505 | VGC120L10.0R10-02S08 AH725 12.00mm Diameter x 14.20mm Functional Length x 10.00mm Depth of Cut x 1.00mm Radius TiAlN Coated Carbide Counter Boring Replaceable Milling Tip

$77.50 $64.33

(You save $13.17)

interval quantity:

SKU:

23137709

UPC:

Weight:

1.23 LBS

Minimum Purchase:

2 units

Shipping:

Free Shipping

Features
Reviews
Other Details

Counterboring, 2 flutes, for counterboring (can be used for milling).

Product Specifications

Manufacturer Part Number	6859505
Cutting Diameter (mm)	12mm
Depth of Cut Maximum (mm)	10mm
Functional Length (mm)	14.2mm
Corner Radius (mm)	1mm
Grade	AH725
Flute Helix Angle (Degree)	10 Degree
Number of Flutes	2
Body Material	Carbide
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid Carbide Center Cutting Endmills 90
Applicable Material	Steel, Stainless Steel, Cast Iron, Hi Temp Alloys
Application	Multi Functional Tools
