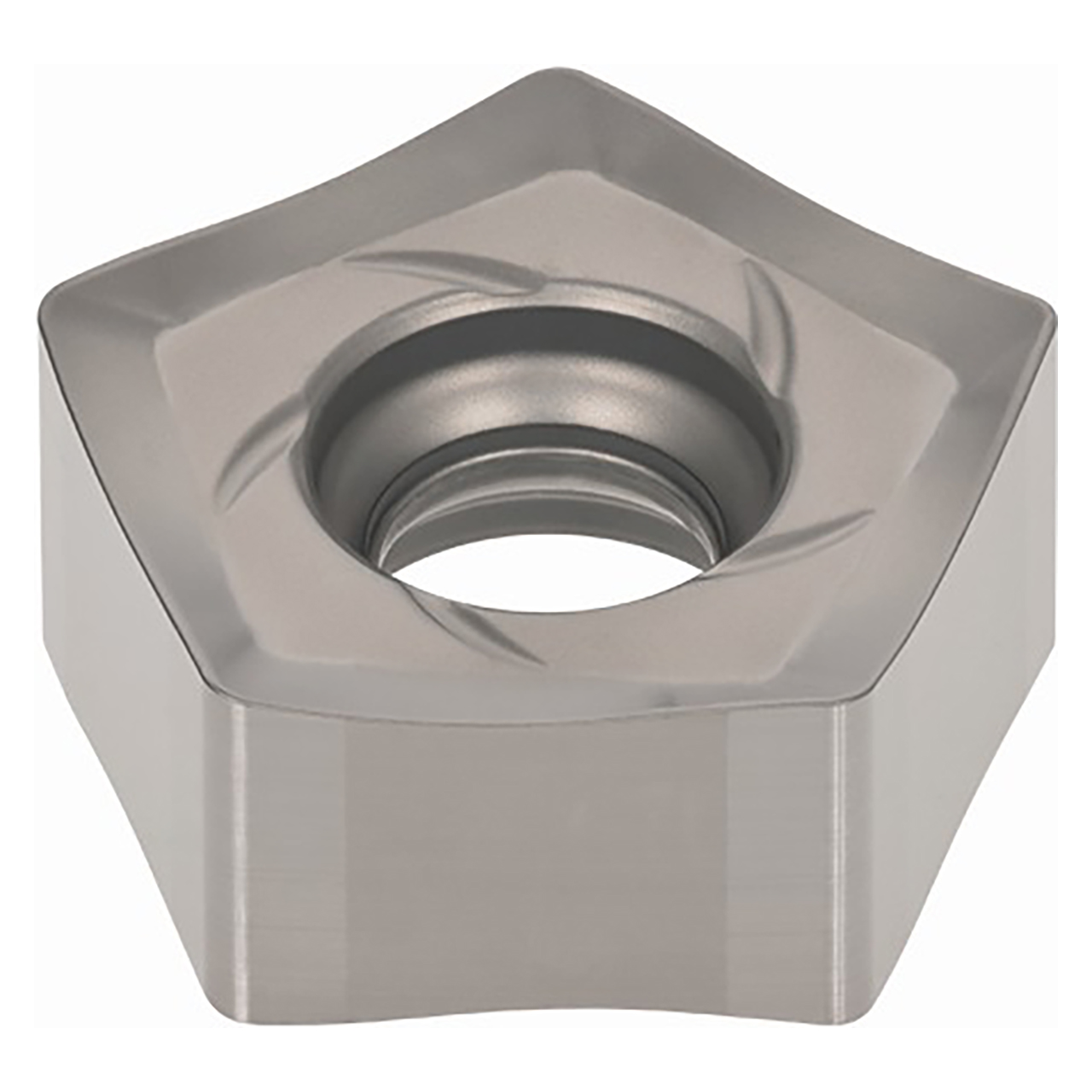

For general purpose, C class, Double sided pentagonal insert. Suitable for steels and cast iron.
Product Specifications
| # MFG | 6860126 |
| Cutting Edge Effective Length (Inch) | 0.35" |
| Corner Radius (Inch) | 0.0314" |
| Depth of Cut Maximum (Inch) | 0.252" |
| Inscribed Circle Diameter (Inch) | 0.48" |
| Insert Thickness (Inch) | 0.233" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 10 |
| Wiper Edge Length | 0.055" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH725
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
31/64"
Inscribed Circle (Decimal Inch):
0.4800"
Inscribed Circle (mm):
12.19mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2330"
Thickness (mm):
5.92mm
interval quantity:
10
