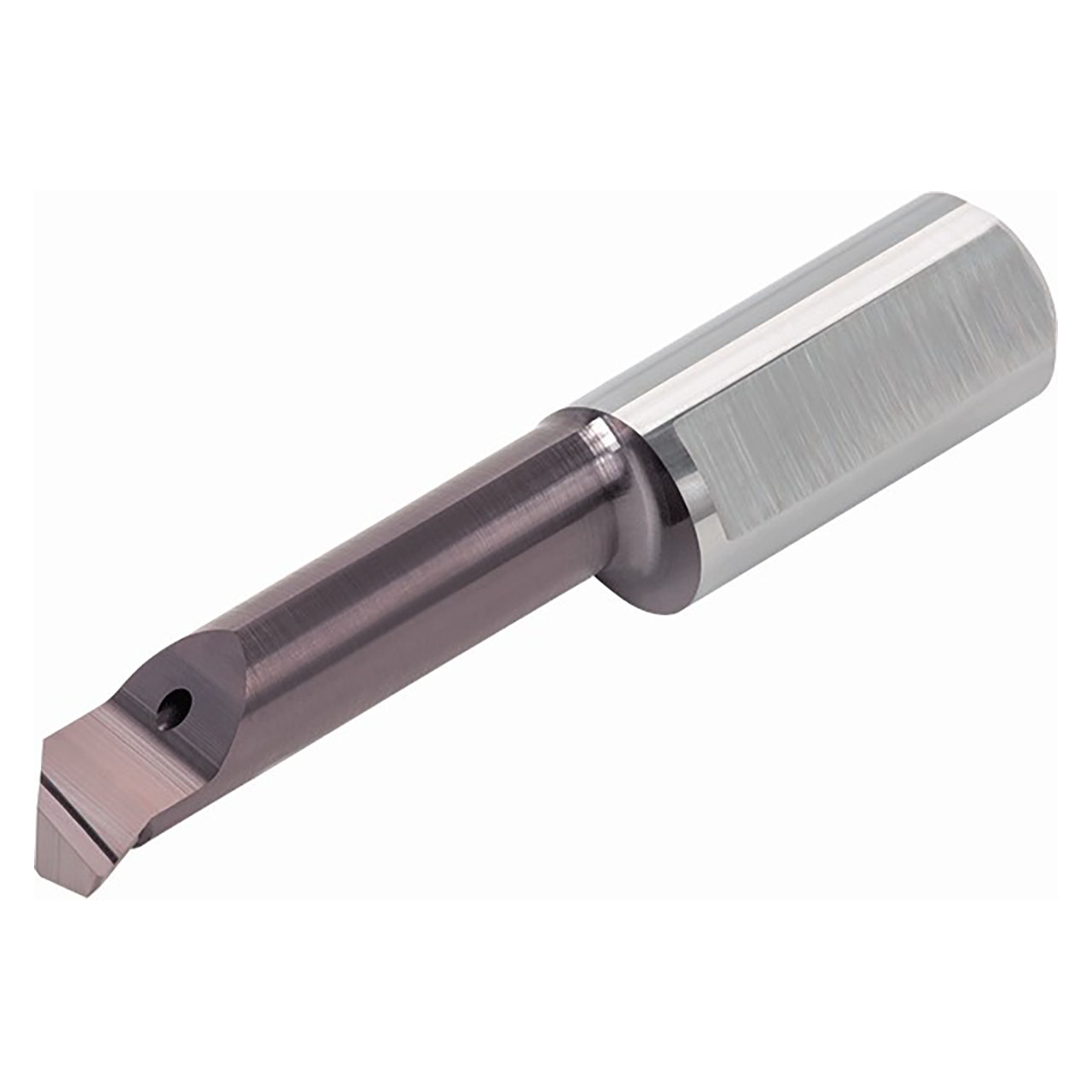

Solid boring bars for boring, profiling & chamfering.
Product Specifications
| Manufacturer Part Number | 6861146 |
| Connection Diameter Machine Side (Inch) | 0.276" |
| Functional Length (Inch) | 1.772" |
| Functional Width (Inch) | 0.11" |
| Front End Width (Inch) | 1/4" |
| Head Length (Inch) | 1.142" |
| Minimum Bore Diameter (Inch) | 0.268" |
| Cutting Direction (Hand) | Right Hand |
| Rake Angle Radial (Degree) | 20 Degree |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Turn Tool |
| Body Material | Carbide |
| Coating | TiAlN |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Application | For Miniature Machining |
| Grade | SH730 |
