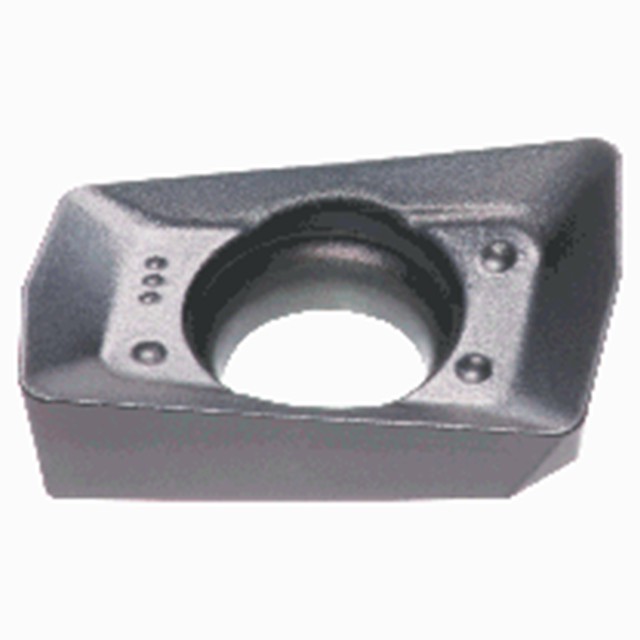

Tungaloy 6861257 | AOMT070202PDPR-MJ AH140 0.185" Diameter x 0.091" Thickness x 0.008" Radius TiAlN Coated Carbide Milling Insert

$17.55 $14.57
(You save $2.98)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH140
Finish/Coating:
TiAlN
Width (Inch):
3/16"
Width (Decimal Inch):
0.1850"
Width (mm):
4.70mm
Length (Inch):
5/16"
Length (Decimal Inch):
0.3150"
Length (mm):
8.00mm
Inscribed Circle (Inch):
3/16"
Inscribed Circle (Decimal Inch):
0.1850"
Inscribed Circle (mm):
4.70mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0910"
Thickness (mm):
2.31mm
SKU:
23011100
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

High performance insert with MJ chipbreaker for general purpose.


Product Specifications
Manufacturer Part Number6861257
Cutting Edge Effective Length (Inch)0.315"
Corner Radius (Inch)0.0079"
Depth of Cut Maximum (Inch)0.276"
Inscribed Circle Diameter (Inch)0.185"
Insert Length (Inch)0.315"
Insert Thickness (Inch)0.091"
Insert Width (Inch)0.185"
Maximum Feed per Tooth0.0039"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges2
Wiper Edge Length0.083"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH140
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel
