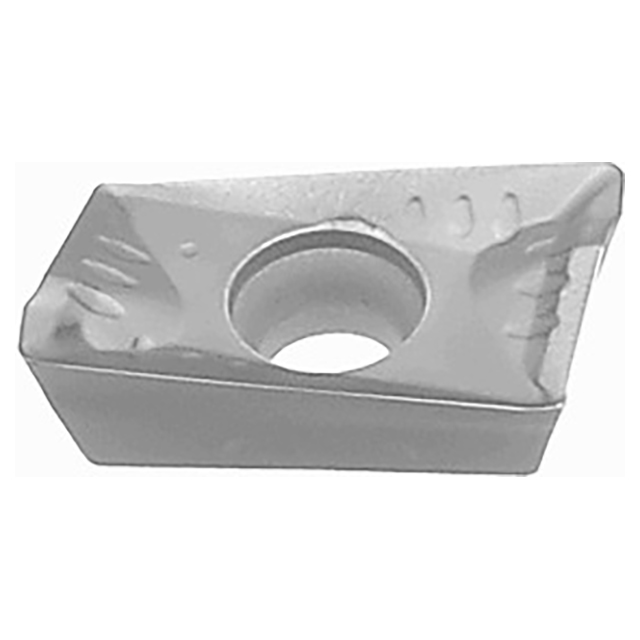

Tungaloy 6863131 | ASMT170508PDPR-MS AH130 0.220" Thickness x 0.728" Insert Length x 0.032" Radius TiAlN Coated Carbide Milling Insert

$25.65 $16.67
(You save $8.98)
Brand:
Tungaloy
Finish/Coating:
TiAlN
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.3860"
Thickness (Decimal Inch):
0.2200"
Length (Decimal Inch):
0.7280"
Width (Decimal Inch):
0.3860"
interval quantity:
10
SKU:
23017959
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

With MS chipbreaker, suitable for stainless steel precious milling.


Product Specifications
# MFG6863131
Cutting Edge Effective Length (Inch)0.665"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.63"
Insert Length (Inch)0.728"
Insert Thickness (Inch)0.22"
Insert Width (Inch)0.386"
Number of Cutting Edges2
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH130
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel
