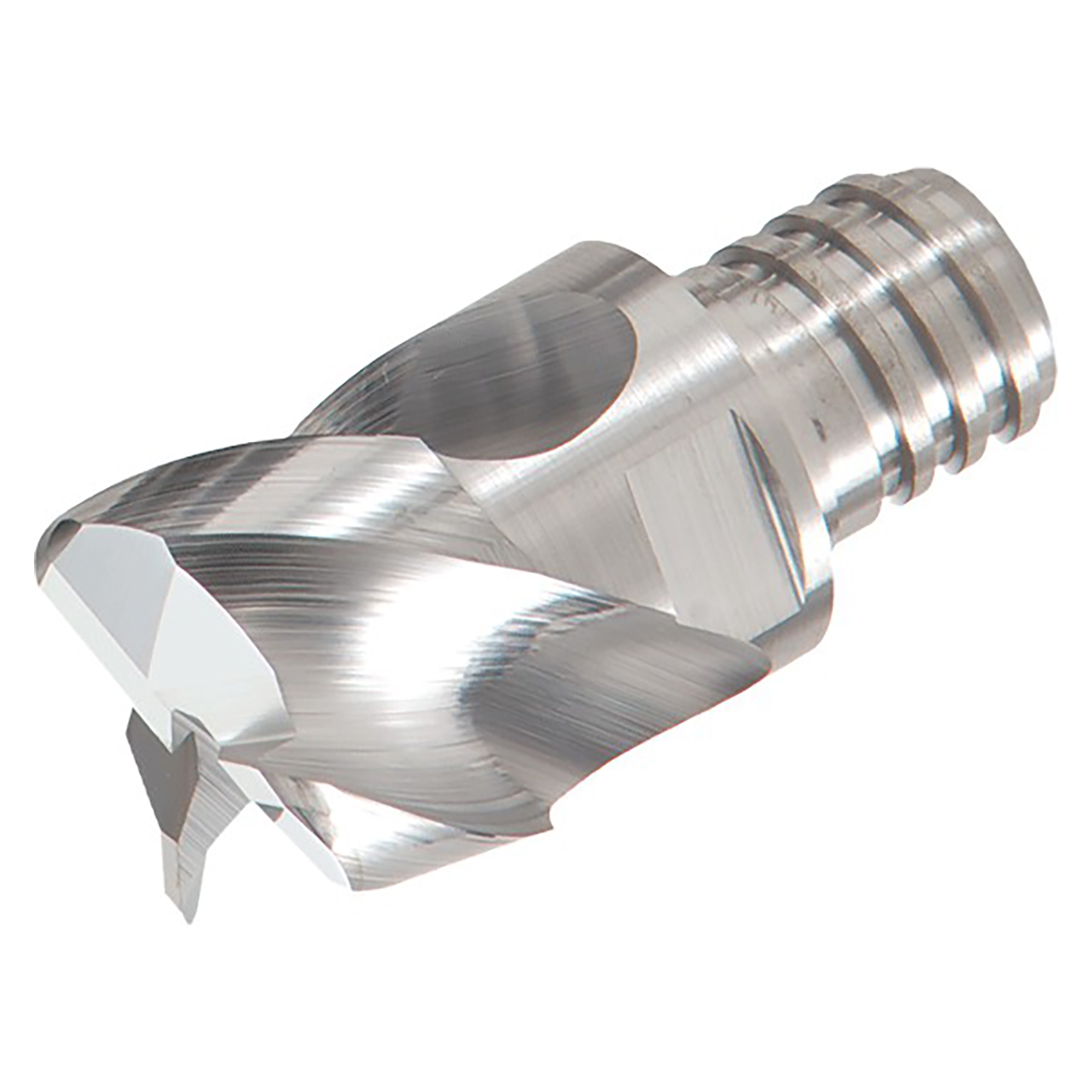

Square, 3 flutes, roughing-finishing, for non-ferrous metal, general.
Product Specifications
| Manufacturer Part Number | 6864003 |
| Cutting Diameter Maximum (Inch) | 3/8" |
| Cutting Diameter (Inch) | 3/8" |
| Depth of Cut Maximum (Inch) | 0.23" |
| Functional Length (Inch) | 0.51" |
| Corner Radius (Inch) | 0.062" |
| Maximum Feed per Tooth (fz) | 0.0047"/tooth |
| Grade | KS15F |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Applicable Material | Non Ferrous Metals |
| Application | Shoulder Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
