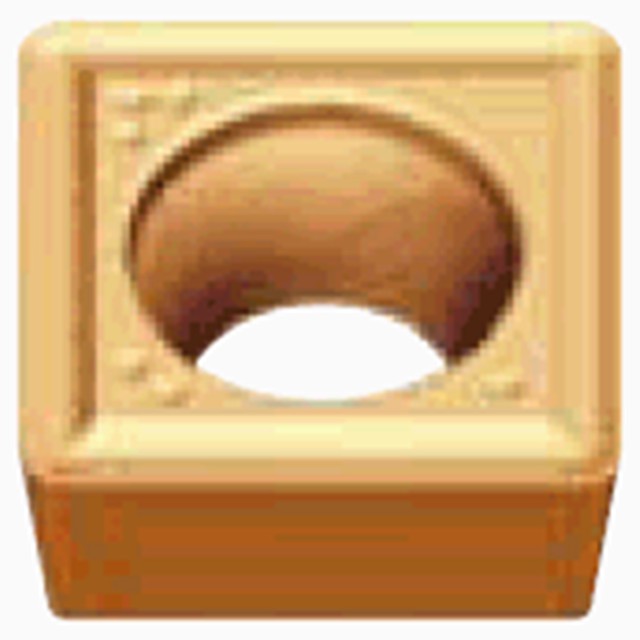

Tungaloy 6864681 | SCMT 32.53 CM T5115 3/8" Circle Diameter x 0.156" Thickness x 0.047" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$15.00 $10.50
(You save $4.50)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
SKU:
23138546
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, square insert, for multi-purpose cutting of grey and ductile cast iron.


Product Specifications
Manufacturer Part Number6864681
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)3/8"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT5115
Tool TypeTurn Positive Inserts
Applicable MaterialCast Iron
Chip Breaker TypeCM
Major Clearance Angle7 Degree
Body MaterialCarbide
