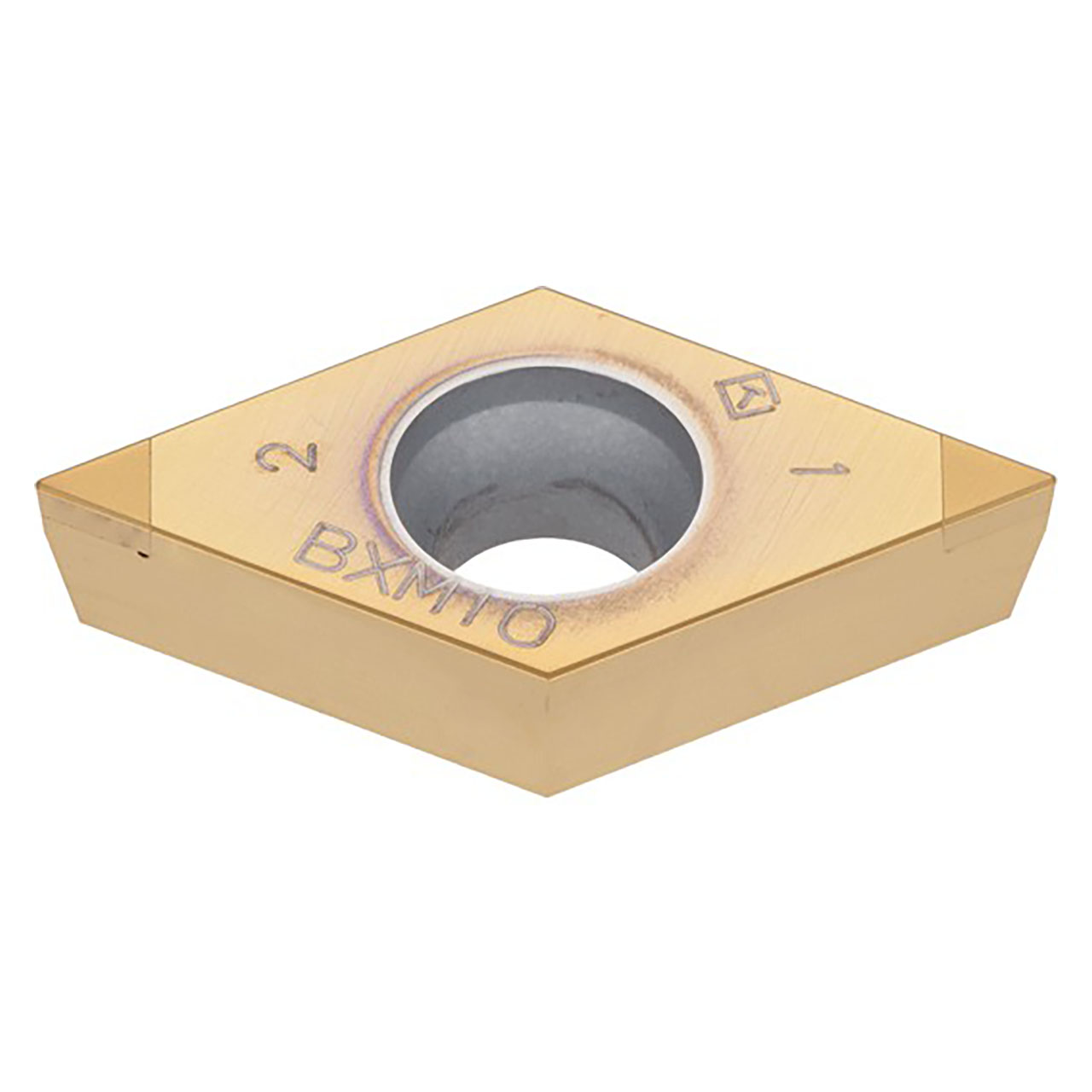

Positive 7 degree relief angle, M/G class, 55 degree rhombic CBN insert.
| # MFG | 6903773 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.457" |
| Cutting Edge Effective Length (Inch) | 0.098" |
| Maximum Depth of Cut (Inch) | 0.0118" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0079"/rev |
| Minimum Depth of Cut (Inch) | 0.002" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Grade | BR35F |
| Tool Type | Turn Ultra Hard Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | SR-CBN |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
