Tungaloy 6955709 | LXMU160504PER-MM AH8015 9.40mm Width x 5.23mm Thickness x 0.41mm Radius 2 Edge AlTiN Coated Carbide Milling Insert

$39.60 $32.87
(You save $6.73)
Brand:
Tungaloy
Finish/Coating:
AlTiN
Material:
Carbide
Thickness (Decimal Inch):
0.2060"
Width (Decimal Inch):
0.3700"
interval quantity:
10
SKU:
23344069
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Tungaloy 6955709 | LXMU160504PER-MM AH8015 9.40mm Width x 5.23mm Thickness x 0.41mm Radius 2 Edge AlTiN Coated Carbide Milling Insert

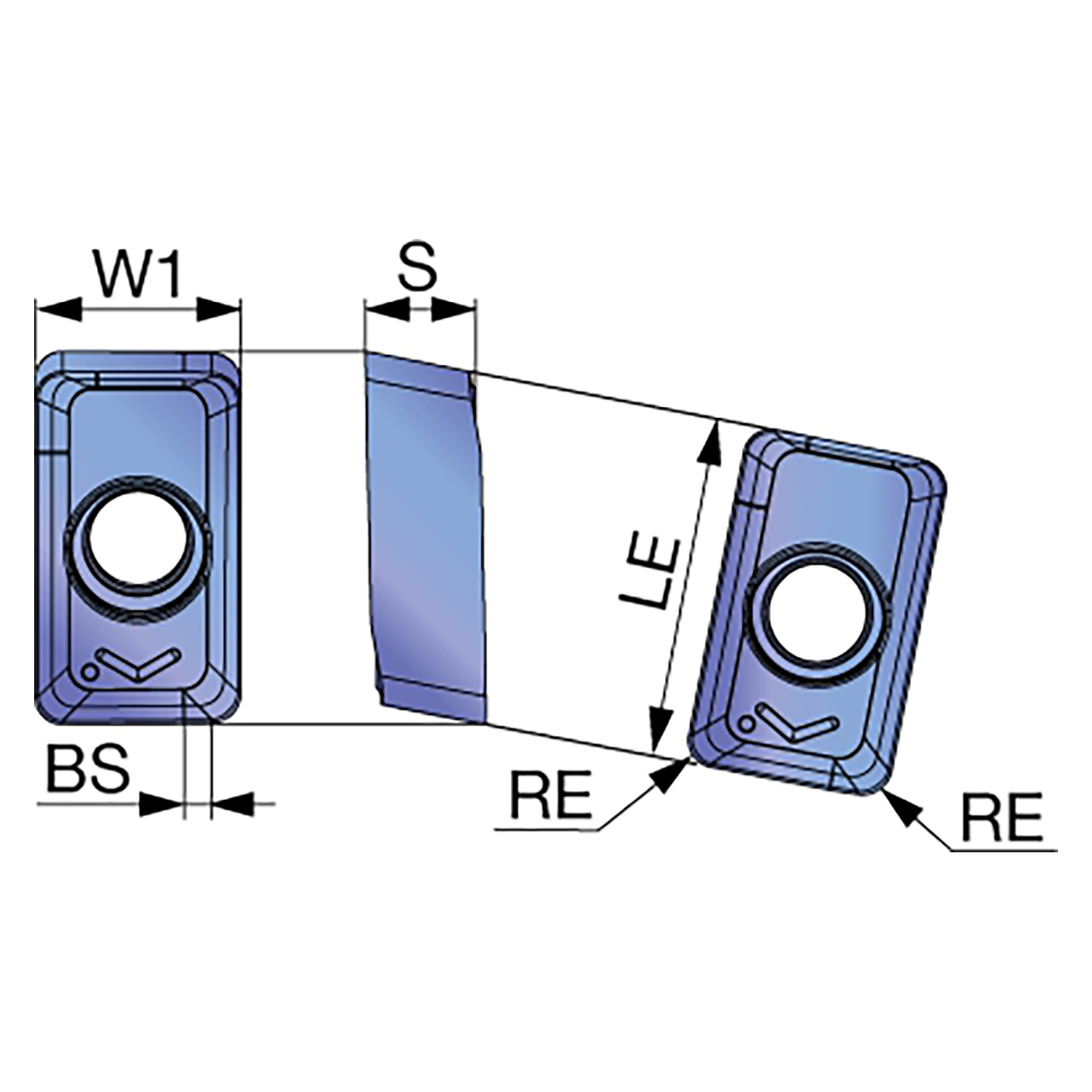

Product Specifications
Manufacturer Part Number6955709
Corner Radius (Decimal Inch)0.016"
Cutting Edge Effective Length (Decimal Inch)0.618"
Maximum Depth of Cut (Decimal Inch)0.571"
Insert Thickness (Decimal Inch)0.206"
Insert Width (Decimal Inch)0.370"
Wiper Edge Length (Decimal Inch)0.063"
Number of Edges2
GradeAH8015
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium
Cutting Edge MaterialCarbide
Body MaterialCarbide
CoatingAlTiN
Product TypeMilling Insert
