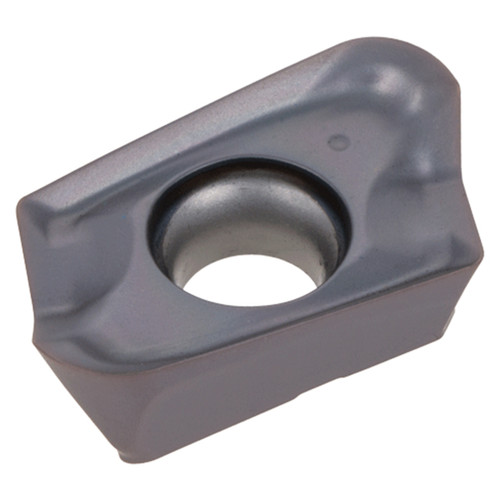

| Manufacturer Part Number | 7753214 |

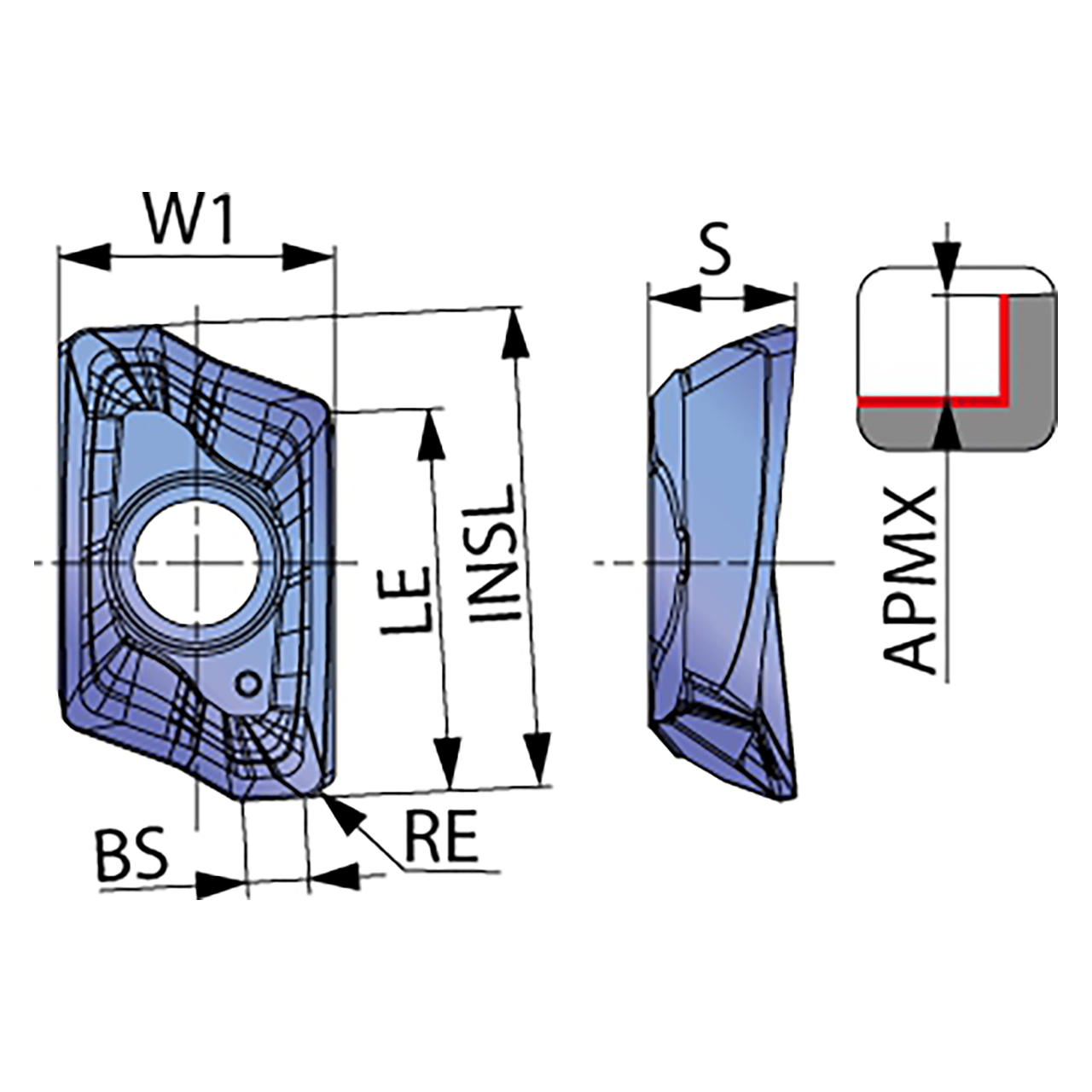

| Corner Radius (Decimal Inch) | 0.016" |
| Cutting Edge Effective Length (Decimal Inch) | 0.673" |
| Maximum Depth of Cut (Decimal Inch) | 0.650" |
| Insert Length (Decimal Inch) | 0.850" |
| Insert Thickness (Decimal Inch) | 0.264" |
| Insert Width (Decimal Inch) | 0.488" |
| Wiper Edge Length (Decimal Inch) | 0.122" |
| Number of Edges | 2 |
| Grade | AH8015 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Product Type | Milling Insert |
