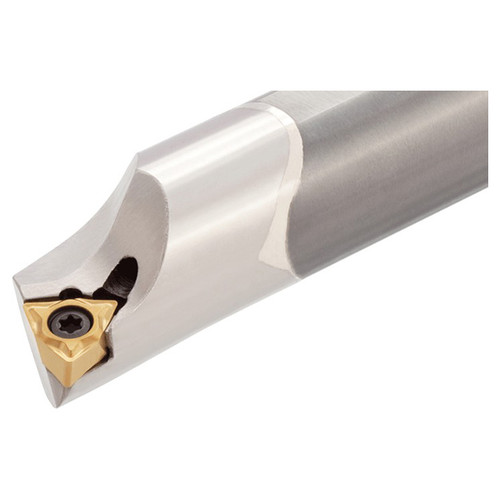

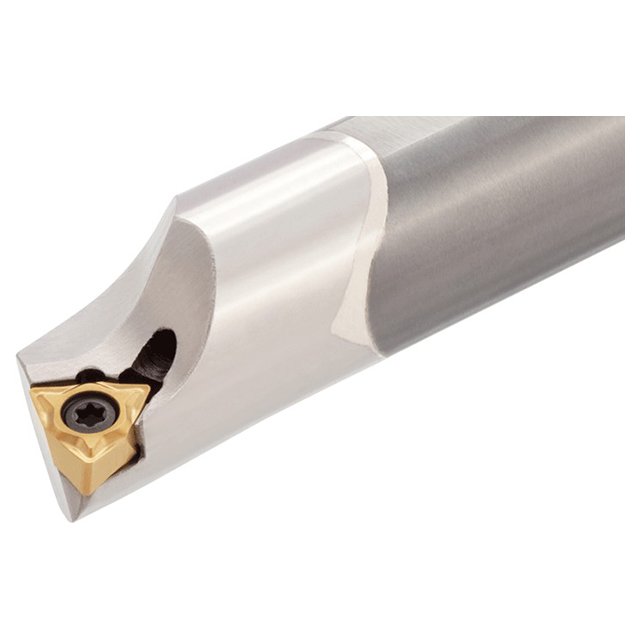

Screw-on boring bars for trigon insert with 6 edges.
Product Specifications
| # MFG | 6990703 |
| Connection Diameter Machine Side (Inch) | 3/8" |
| Functional Length (Inch) | 5" |
| Functional Width (Inch) | 0.281" |
| Head Length (Inch) | 1" |
| Minimum Bore Diameter (Inch) | 1/2" |
| Shank Height (Inch) | 0.35" |
| Body Material | Carbide |
| Application | For 80 Degree Trigon Insert, For Miniature Machining |
| Tool Type | Toolholders- For Boring & Internal Profiling |
| Rake Angle Axial (Degree) | -10 Degree |
| Rake Angle Radial (Degree) | -14 Degree |
