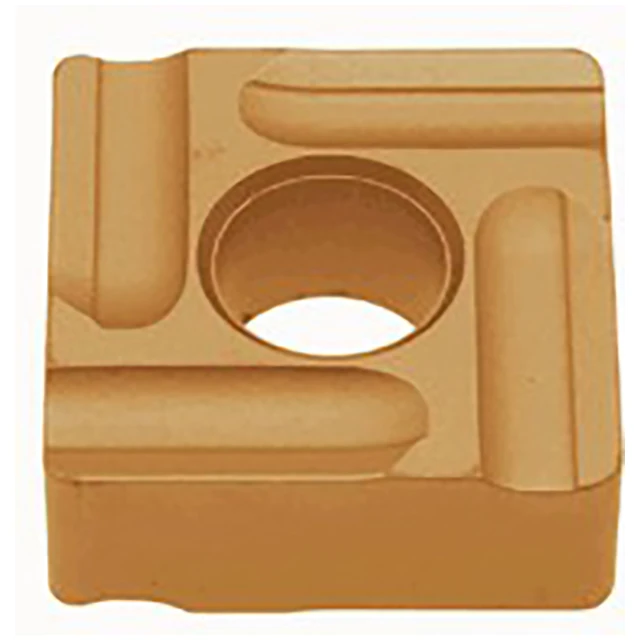

Tungaloy 6994215 | SNMG 432 L-S AH645 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$15.15 $10.61
(You save $4.54)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23023694
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, square insert, for medium cutting.


Product Specifications
# MFG6994215
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)1/2"
Maximum Depth of Cut (Inch)0.1575"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH645
Tool TypeTurn Negative Inserts
Applicable MaterialStainless Steel
Chip Breaker TypeS
Body MaterialCarbide
