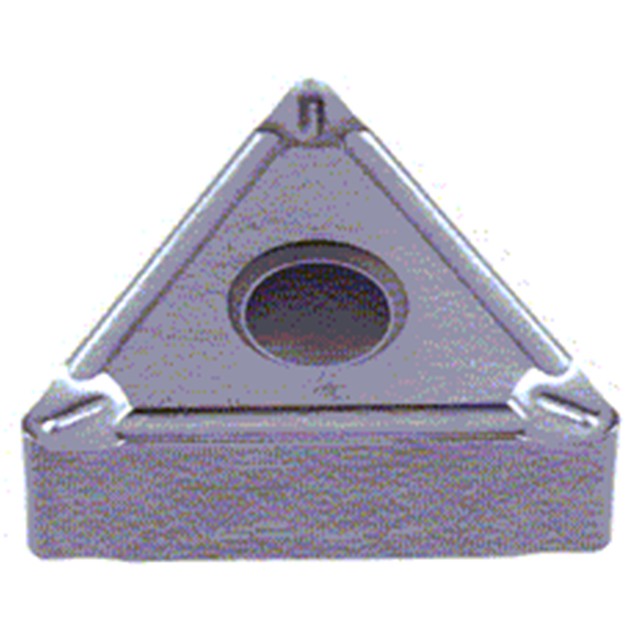

Tungaloy 6998206 | TNMG 222-11 NS9530 1/4" Circle Diameter x 1/8" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$6.30 $4.41
(You save $1.89)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
SKU:
23139637
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, for finishing.


Product Specifications
Manufacturer Part Number6998206
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.089"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0078"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0027"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type11
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
