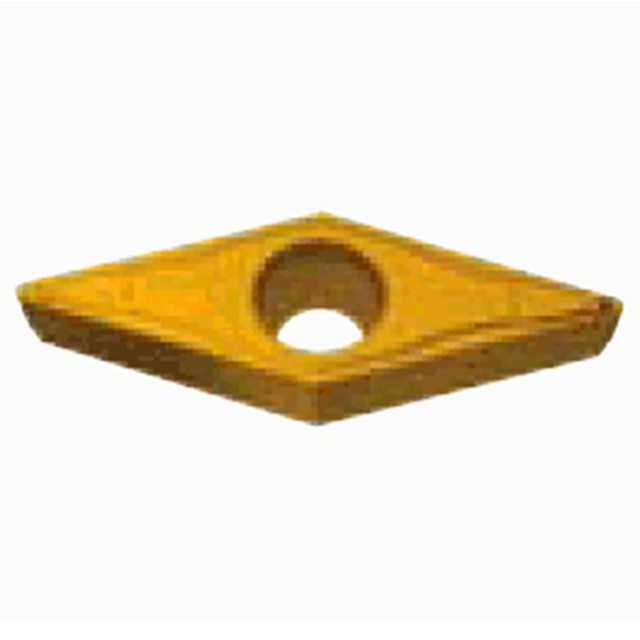

Tungaloy 6998382 | VBMT 220.5 PF GT9530 1/4" Circle Diameter x 1/8" Thickness x 0.008" Radius TiCNO Coated Cermet Indexable Turning Insert

$22.45 $15.72
(You save $6.73)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
SKU:
23139708
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 5 degree relief angle, M class, 35 degree rhombic insert, for finishing.


Product Specifications
Manufacturer Part Number6998382
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.441"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0031"/rev
CoatingTiCNO
Cutting Edge MaterialCermet
GradeGT9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypePF
Major Clearance Angle5 Degree
Body MaterialCarbide
