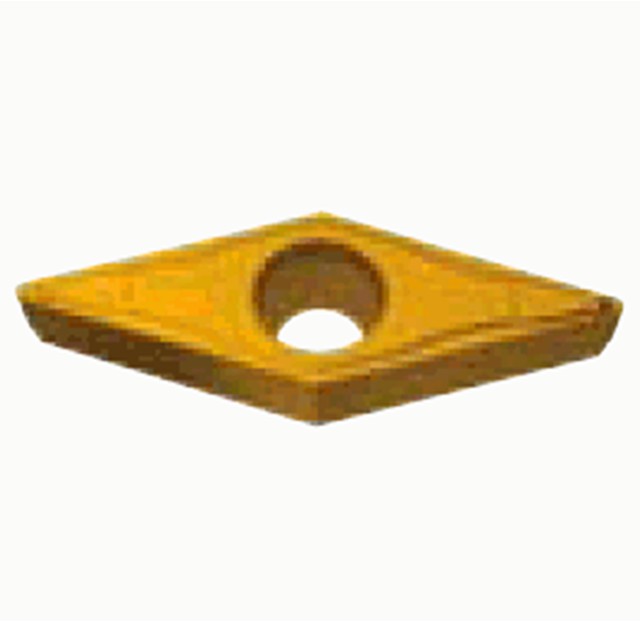

Tungaloy 6998385 | VBMT 331 PF GT9530 3/8" Circle Diameter x 0.187" Thickness x 0.016" Radius TiCNO Coated Cermet Indexable Turning Insert

$19.22
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23026181
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 5 degree relief angle, M class, 35 degree rhombic insert, for finishing.


Product Specifications
Manufacturer Part Number6998385
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.654"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0031"/rev
CoatingTiCNO
Cutting Edge MaterialCermet
GradeGT9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypePF
Major Clearance Angle5 Degree
Body MaterialCarbide
