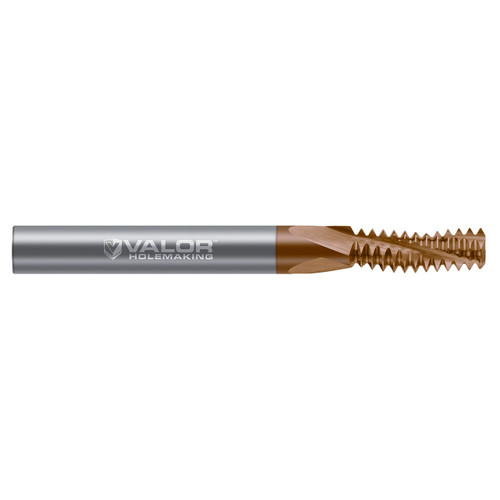

Valor V550418-X | 0.3600" Cutter Diameter x 0.3750" (3/8) Shank x 0.8750" (7/8) LOC 4 Flute Val-Max X Coated Helical Flute Thread Mill

$283.50
Brand:
Valor
Cutter Diameter (Inch):
1/3"
Cutter Diameter (Decimal Inch):
0.3600"
Cutter Diameter (mm):
9.14mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Finish/Coating:
Val-Max X
interval quantity:
1
SKU:
10271277
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Valor holemaking's premium offering of thread mills - multi-form - metric threads is designed to mill right hand and left hand 60 Degree UN, metric threads, delivering impressive versatility to your application.

Features:

  • Efficiently machines both internal & external metric threads
  • Specifically engineered to cut internal and external 60 Degree metric threads
  • Designed to mill right hand and left hand metric threads for added versatility
  • Able to cut larger threads of the same pitch
  • Offered in 3 and 4 helical flutes
  • Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV550418-X
Cutter Diameter (Inch)0.3600"
Length of Cut (Inch)0.8750" (7/8)
Shank Diameter (Inch)0.3750" (3/8)
Overall Length (Inch)3.5000" (3-1/2)
SizeM12-1.75
Included Angle60 Degree
MetricN
Number of Flutes4
CoatingVal-Max X
