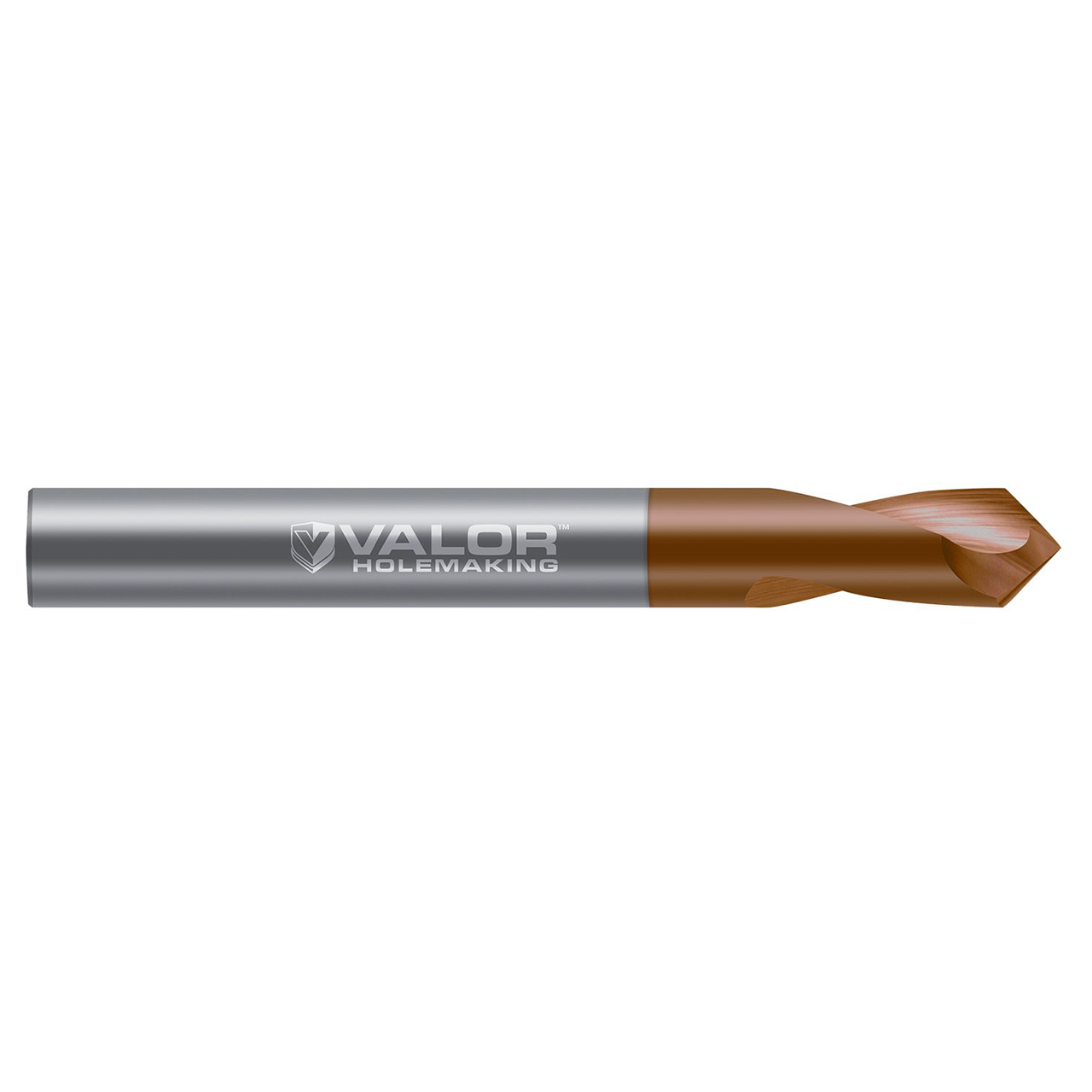

Valor holemaking's offering of high performance spotting drills delivers pinpoint accuracy by featuring a highly engineered point design to provide better positioning and stability for high performance drilling applications.
Features:
- Thinned web to reduce walking
- Uncoated option well-suited for spot drilling aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
Manufacturer Part Number | V634710 |
Drill Diameter (Inch) | 0.3937" |
Drill Diameter (mm) | 10.000mm |
Flute Length (Inch) | 0.984" |
Flute Length (mm) | 25.00mm |
End Length (mm) | 1.81mm |
Shank Diameter (mm) | 10.000mm |
Overall Length (mm) | 75.000mm |
Included Angle | 140 Degree |
Point Angle | 140 Degree |
Angle Per Side | 70 Degree |
Metric | Y |
Number of Flutes | 2 |
Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75.00mm
