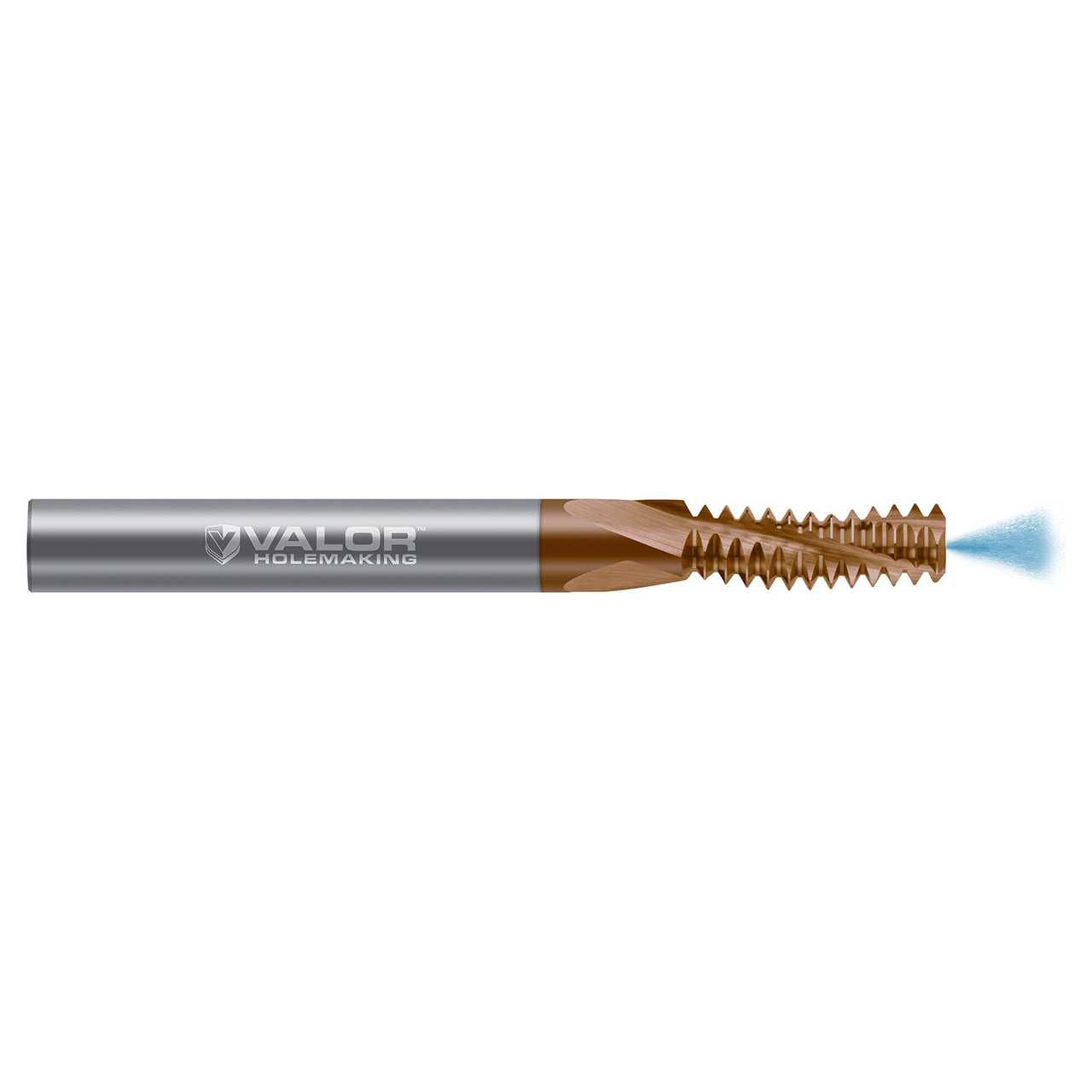

Valor holemaking's fully stocked offering of coolant-through, multi-form thread mills for metric threads includes products coated in proprietary Val-Max X coating for improved tool life and heat resistance.
Features:
- Maximum chip ejection in blind hole applications
- Coolant-through design allows for maximum chip ejection in blind holes
- Designed to mill right hand and left hand 60 Degree metric threads
- Able to cut larger threads of the same pitch
- 3 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V757297 |
| Cutter Diameter (Inch) | 0.0850" |
| Length of Cut (Inch) | 0.1780" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Size | M3-0.50 |
| Included Angle | 60 Degree |
| Metric | N |
| Coolant Through | Y |
| Number of Flutes | 3 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Decimal Inch):
0.0850"
Cutter Diameter (mm):
2.16mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
1/6"
Length of Cut (Decimal Inch):
0.1780"
Length of Cut (mm):
4.52mm
Finish/Coating:
Uncoated
Through Coolant:
Yes
