Product Specifications

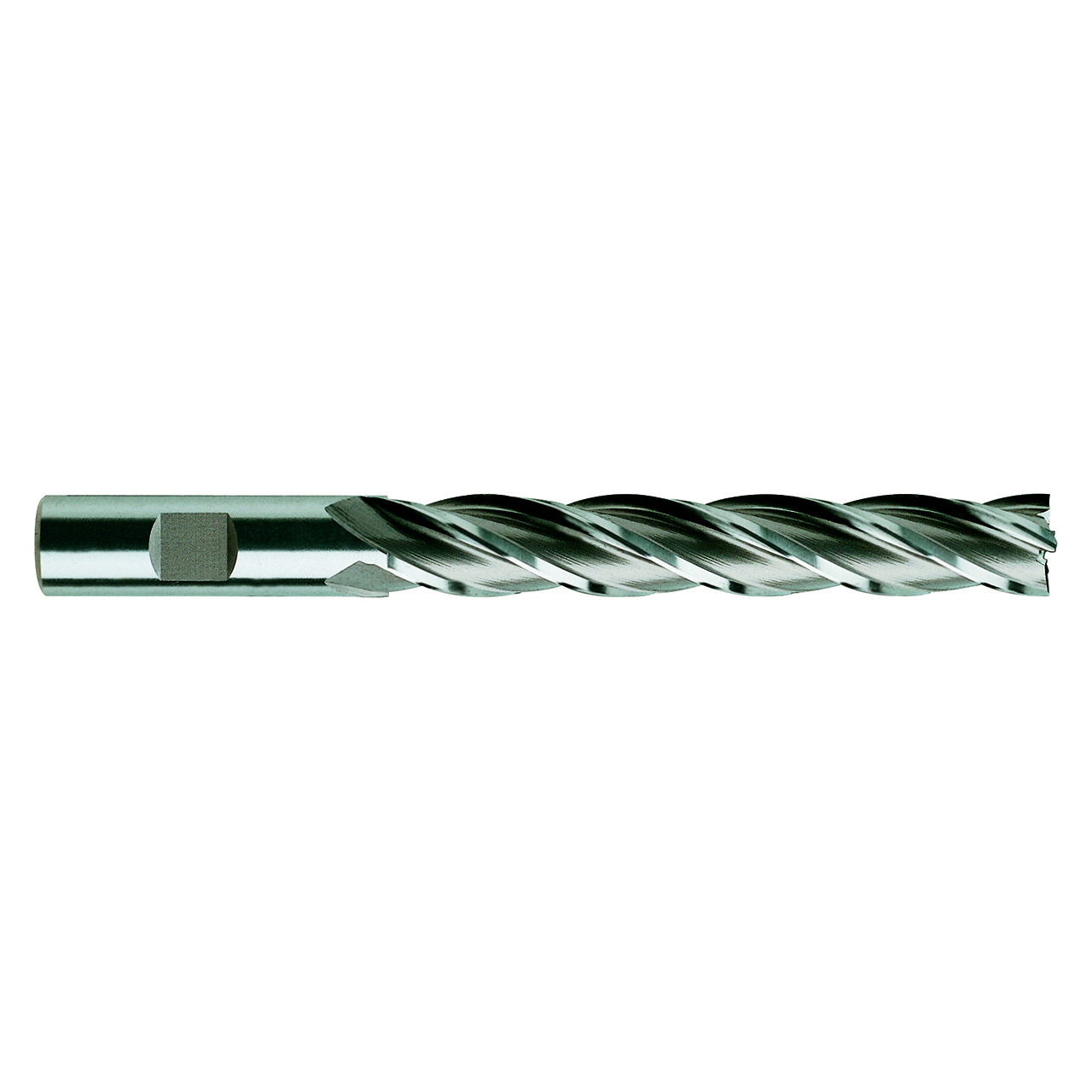

| EDP Number | 06109HE |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 4.0000" |
| Length of Cut (Inch) | 4" |
| Length of Cut (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.2500" |
| Overall Length (Inch) | 6-1/4" |
| Overall Length (mm) | 158.75mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | AlTiN |
| Shank Style | Flat |
| Cut Type | End Cutting |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1036 |
| End Type | Single End |
| Length Type | Extra Long |
| Product Type | Square End Mill |
