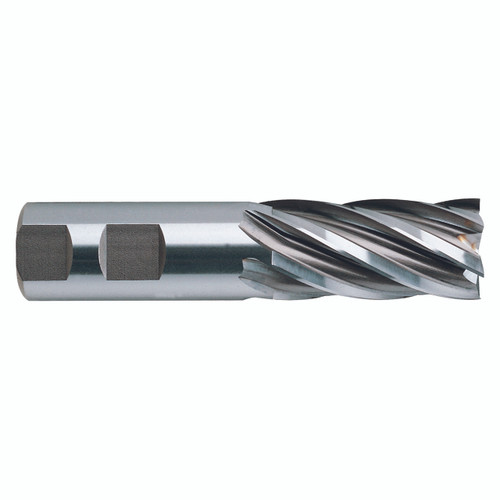

Product Specifications
| EDP Number | 07336CN |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 3.3750" |
| Overall Length (Inch) | 3-3/8" |
| Overall Length (mm) | 85.73mm |
| Series | E2039 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Coating | TiN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
