Product Specifications
| EDP Number | 07573TF-030R |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Inch) | 0.0300" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5216 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Regular |
| End Type | Single End |

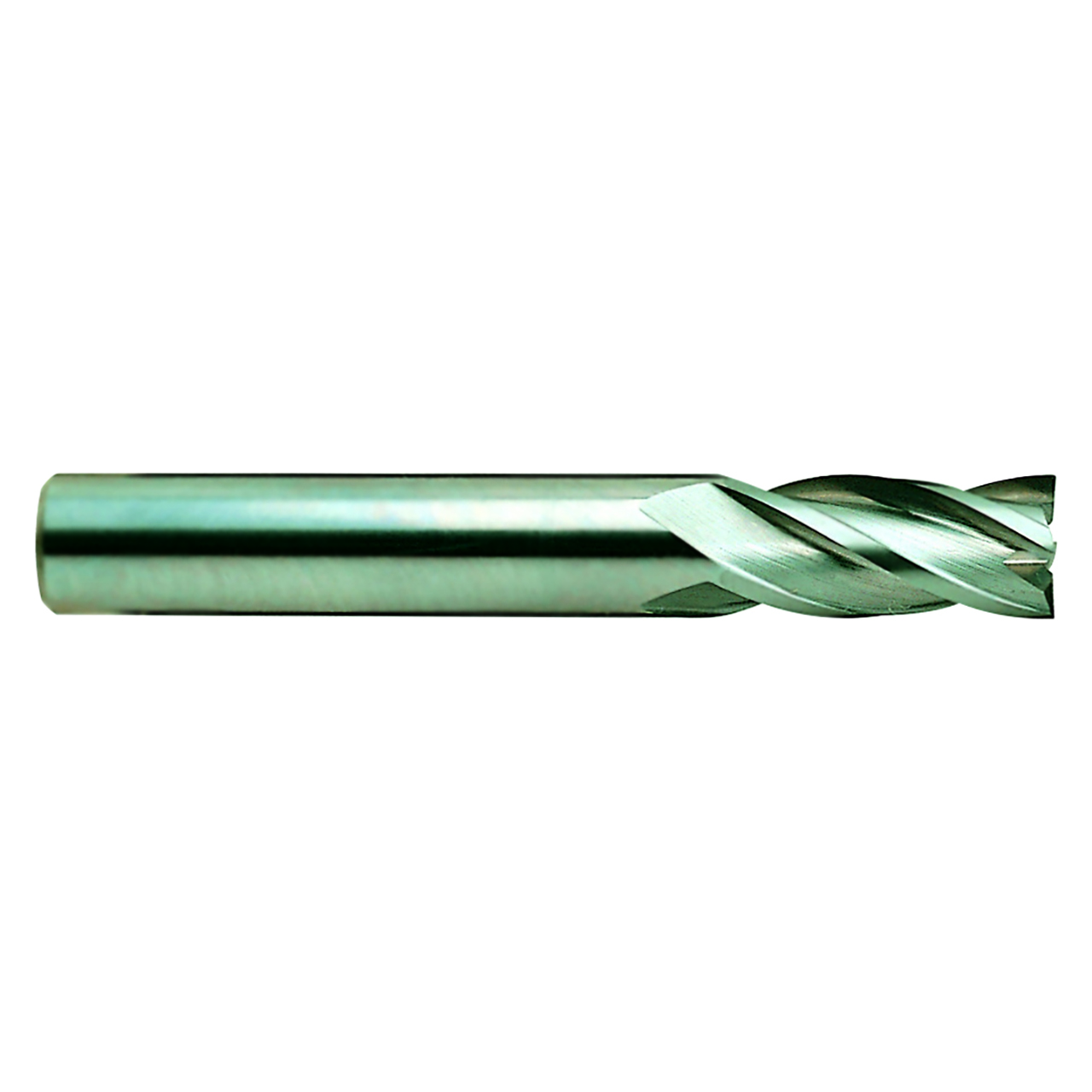

| Product Type | Corner Radius End Mill |
