Product Specifications
| EDP Number | 08145 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (Inch) | 7/8" |
| Diameter (mm) | 22.23mm |
| Shank Diameter (Decimal Inch) | 0.8750" |
| Shank Diameter (Inch) | 7/8" |
| Shank Diameter (mm) | 22.23mm |
| Length of Cut (Decimal Inch) | 3.5000" |
| Length of Cut (Inch) | 3-1/2" |
| Length of Cut (mm) | 88.90mm |
| Overall Length (Decimal Inch) | 5.7500" |
| Overall Length (Inch) | 5-3/4" |
| Overall Length (mm) | 146.05mm |
| Number of Flutes | 6 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | Bright |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1162 |
| End Type | Single End |
| Length Type | Long |

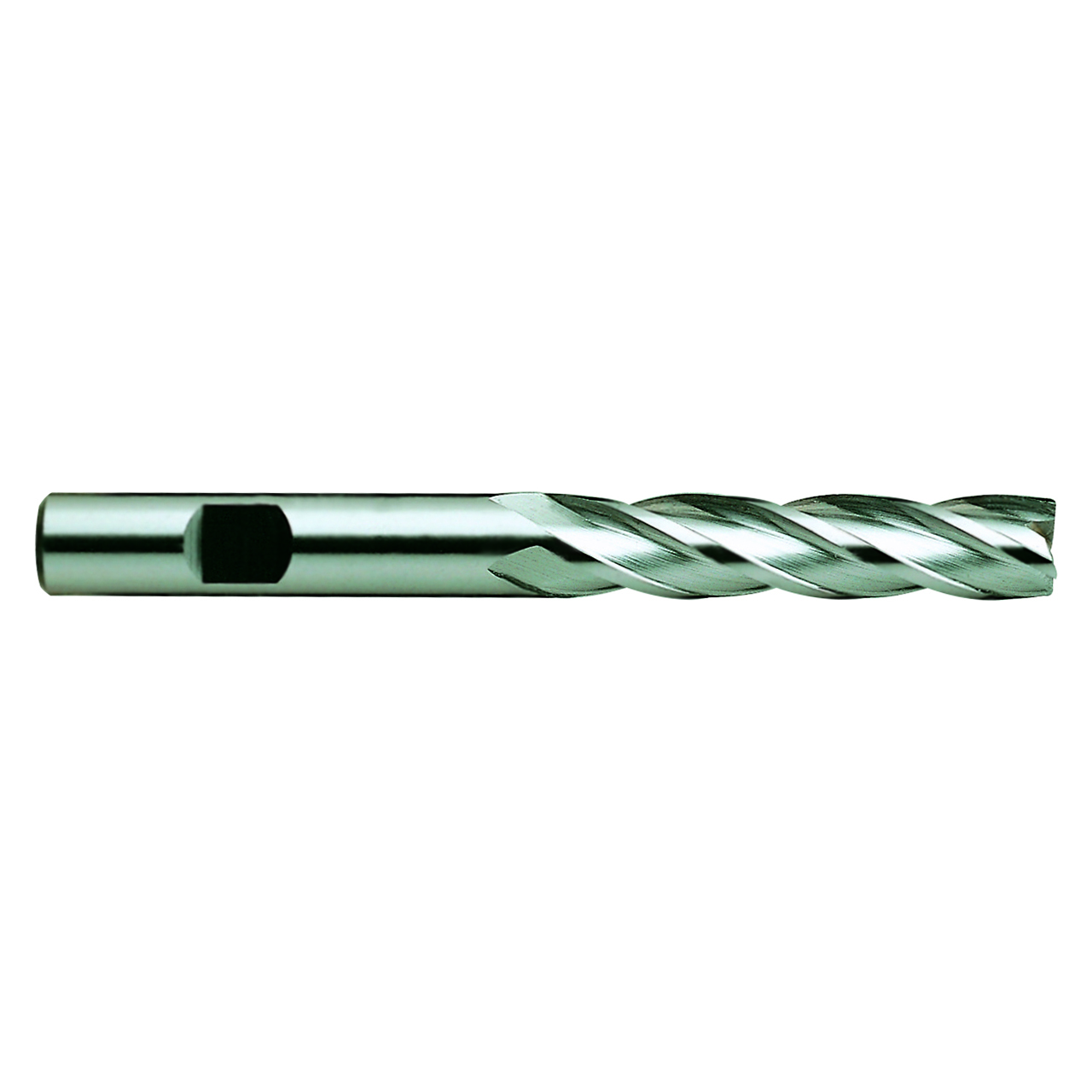

| Product Type | Square End Mill |
